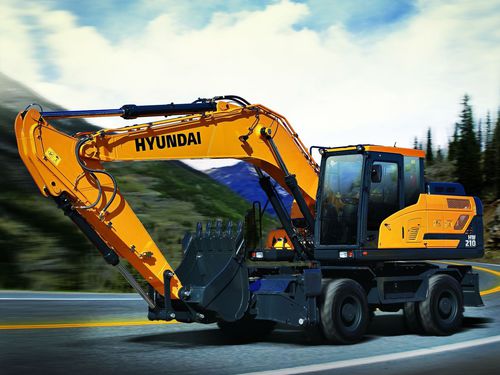

Medium excavator HW210

wheeledTier 4 - finalconstruction

Overview
Step into the HW210 cab and find a workstation designed for demanding jobsite routines. Controls are intuitive and ergonomically laid out to support precise operation and continuous productivity.

Rugged performance
The HW210 combines high horsepower with superior breakout and arm forces, plus extended digging reach. Its wheeled configuration offers fast site mobility, making it suitable for loading, leveling and general heavy excavating tasks where speed and manoeuvrability are required.

Cabin & comfort
High-quality cabin with high-performance air conditioning, wide visibility and additional storage. Standard air-suspension seat offers height and weight adjustment, headrest, armrest and reclining. Optional 2-way auxiliary hydraulics enable hydraulic attachments controlled via foot pedal or joystick buttons. Emergency engine shut-off is located at the seat base for quick access.

Key features

• Optional Advanced Around View Monitoring (AAVM) for 360° visibility and Intelligent Moving Object Detection (IMOD).
• ECO Gauge provides instant feedback on fuel efficiency with average, hourly and daily consumption monitoring.
• Intelligent Power Control (IPC) to adjust hydraulic pump regulation (speed, balance, efficiency modes).
• Centralised instrument cluster with large touchscreen, overload warnings, travel alarm, inclination sensor and system indicators.
• Hi-Mate remote fleet management for productivity tracking, maintenance planning and geofencing.
• Optional 2-way auxiliary hydraulics for hydraulic attachments (foot pedal or joystick control).

Benefits / USP

• Up to 90% reduction in PM & NOx emissions (manufacturer claim).
• Up to 15% faster truck loading (manufacturer claim).
• Up to 20% improved fuel efficiency during truck loading and leveling (manufacturer claim).

Engine
Engine Model: Cummins QSB6.7
Engine Power: 129 kW

Main Pump
Max. Flow: 2 x 62.5 l/min

Digging Force
Bucket Breakout Force: 4,330 kgf
Arm Crowd Force: 3,260 kgf

Other technical highlights
Operating weight: 21,200 kg
Bucket capacity: 0.80 m³ – 1.34 m³
Digging Depth: 5,480 mm
Max. Travel Speed (high): 30 km/h
