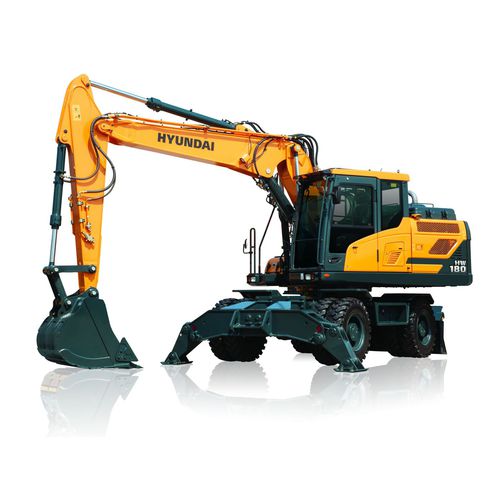

Medium excavator HW180

wheeledTier 3construction

Overview
The Hyundai HW180 wheeled excavator combines transportable mobility with excavator performance. The operator cabin is designed for clear visibility and intuitive control, enabling precise work and efficient cycle times.

Application & Performance
Designed for public works, highway and utility contracting, subdivision and commercial development, and maintenance of large industrial sites, the HW180 delivers high productivity in loading, grading and general excavation while remaining easy to manoeuvre and transport.

Serviceability & Durability
Wide side access doors allow quick cleaning of radiators and coolers. A large-capacity engine air pre-cleaner removes more than 99% of airborne particles to extend filter life. Centralised grease points on the boom and arm simplify routine maintenance. A reinforced chassis and boom/arm assembly reduce wear and service costs and extend machine life. Key engine components (oil filter, air filter, fuel filter, radiators) are easily accessible for fast service.

Key Benefits / Features

• Significant reduction in particulate matter (PM) and NOx emissions (stated: 90% reduction).
• Improved truck-loading productivity (stated: up to 15% faster).
• Fuel efficiency gains in loading and leveling operations (stated: up to 20% improvement).
• ECO Gauge for instant fuel-efficiency feedback and monitoring of average, hourly and daily consumption.
• Intelligent Power Control (IPC) with selectable modes (speed, balance, efficiency) to tailor hydraulic output to the job.
• Optional Advanced Around View Monitoring (AAVM) with Intelligent Moving Object Detection (IMOD) to warn of people or objects within approx. 5 m.
• Centralised instrument cluster with large touchscreen showing machine status and operating parameters (overload, travel alarm, inclination, urea level, external temperature, HVAC).
• Hi‑Mate remote fleet management for productivity monitoring, service planning, geofencing and secure remote access.

Highlighted specifications (from product summary tables)
Operation Weight: 17,800 kg
Bucket Capacity: 0.39 m³ - 1.05 m³
Engine Model: Cummins QSB6.7
Engine Power: 127 kW
Main Pump - Max. Flow: 2 × 172 l/min
Bucket Breakout Force: 12,600 kgf
Arm Crowd Force: 9,280 kgf
Digging Depth: 6,320 mm
Max. Travel Speed (high): 35 km/h

Suggested uses
Public works, highway & utility contracting, subdivision and commercial development, maintenance of large industrial sites.

caractéristiques / spécifications techniques

• Operation weight: 17,800 kg
• Bucket capacity: 0.39 m³ – 1.05 m³
• Engine model: Cummins QSB6.7
• Engine power: 127 kW
• Main pump max. flow: 2 × 172 l/min
• Bucket breakout force: 12,600 kgf
• Arm crowd force: 9,280 kgf
• Digging depth: 6,320 mm
• Max. travel speed (high): 35 km/h
• Engine air pre-cleaner: removes >99% of airborne particles
• Centralised boom and arm grease points for easier maintenance
• Durable, strengthened chassis and boom/arm assembly
• Optional Advanced Around View Monitoring (AAVM) with IMOD
• Integrated Hi‑Mate remote fleet management
