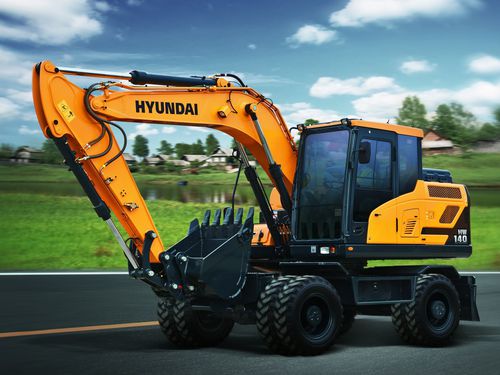

Medium excavator HW140

rubber-tiredTier 4 - finalconstruction

Overview
Step into the cab of the Hyundai HW140 and find a work-oriented environment engineered for fast relocation and precise operation. The machine pairs quick, powerful travel and digging performance with intuitive controls and options for jobsite versatility.

Key features

• High travel speed for rapid relocation between nearby jobsites (max 39 km/h).
• Modular undercarriage allowing configuration with a dozer blade or individually controlled outriggers for stabilization and leveling.
• Spacious cab with high-performance air conditioning, additional storage and optional air-suspension seat for operator comfort.
• Ergonomically designed joysticks and centralised instrument cluster with large touchscreen for clear machine status and parameters.
• Intelligent Power Control (IPC) with speed, balance and efficiency modes to adapt hydraulic output to the task.
• ECO Gauge for real-time fuel-efficiency feedback and monitoring (average, hourly, daily).
• Optional Advanced Around View Monitoring (AAVM) with Intelligent Moving Object Detection (IMOD) for 360° awareness and warnings within five metres.
• Hi MATE remote fleet management for monitoring productivity, servicing, geofencing and usage data.

Performance & Benefits

• Suited for utility repairs, urban construction, street maintenance, truck loading and leveling thanks to rapid travel and modular configuration.
• Modular undercarriage increases versatility: leveling/backfilling with dozer blade or stabilising with outriggers.
• Emissions and productivity improvements: up to 90% reduction in PM & NOx; faster truck loading (approx. +3%); up to 15% fuel savings in truck loading and leveling operations.

Technical specifications

• Model name: HW140
• Brand: Hyundai
• Operating weight: 13,880 kg
• Bucket capacity: 0.23 m³ - 0.73 m³
• Engine model: Cummins QSB6.7
• Engine power: 111 kW
• Main pump — Max. flow: 2 x 168 l/min
• Bucket breakout force: 10,400 kgf
• Arm crowd force: 8,200 kgf
• Maximum digging depth: 4,650 mm
• Max. travel speed (high): 39 km/h
