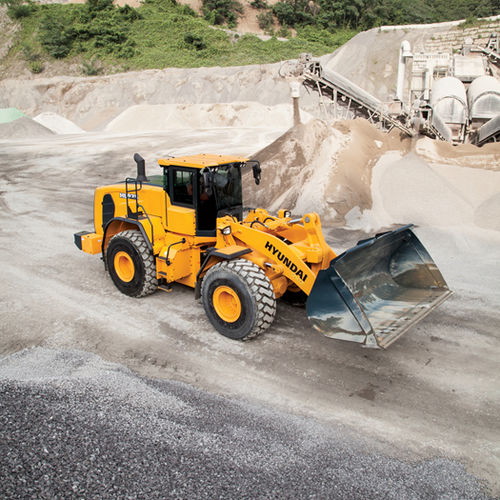

Wheeled loader HL970

articulatedfor construction

Overview
The Hyundai HL970 is a heavy-duty wheel loader engineered for high productivity in loading and transporting granular and bulk materials. Selected technologies enhance operator safety and comfort while reinforced structures improve durability for harsh applications.

Key figures

• Operation weight: 23,500 kg
• Bucket capacity: 3.60 m³ – 4.20 m³
• Engine power: 232 kW (Scania DC09)

Performance & applications

• High breakout and tractive forces for demanding digging and loading tasks
• Designed for loading/transport of sand, gravel and other granular materials; suitable for industrial, mining and quarry operations
• Powerful diesel engine enables penetration of hard materials, smooth tilting and high cycle payloads

Cooling, drivetrain & maintenance

• Efficient cooling system with all‑aluminium reversible fan to maintain optimal temperatures
• Rubber mounts reduce vibration and protect components
• Optional axle cooler to prevent excessively high oil temperatures under heavy loads
• Extended initial service interval for oil and oil filter to 250 hours to increase uptime and reduce maintenance frequency
• Tilt-back engine hood, fully retractable and electrically operated for easy access to sealed engine and cooling compartments

Operator comfort & systems

• Cabin ergonomically designed: adjustable seat, integrated attachment control levers in the armrest; optional air suspension seat and seat heating
• Cabin noise reduced by 2 dB for improved operator comfort
• Automatic/manual cumulative weighing system with two-colour weight indicator and weighing error icons for production control
• Eco Pedal to keep operation within optimal fuel consumption range
• Engine Auto Shutdown to cut fuel use and emissions when idle
• Remote monitoring and maintenance management via Hyundai Hi‑MATE telematics

Additional highlights

• Up to 5% higher productivity when using 4th gear
• Up to 7% better fuel efficiency in truck loading cycles

Specifications

• Model: HL970
• Brand: Hyundai
• Operation weight: 23,500 kg
• Bucket capacity: 3.60 m³ – 4.20 m³
• Engine model: Scania DC09
• Engine power: 232 kW
• Tipping load: 18,000 kg
• Breakout force: 21,775 kg
• Initial service interval (oil & filter): 250 hours
• Cooling: all‑aluminium reversible fan; rubber mounts; optional axle cooler
• Weighing: automatic/manual cumulative weighing system (two‑colour indicator, error icons)
• Operator features: adjustable seat, integrated armrest controls, optional air suspension seat, seat heating
• Fuel-saving features: Eco Pedal, Engine Auto Shutdown
• Telematics: Hyundai Hi‑MATE compatible
