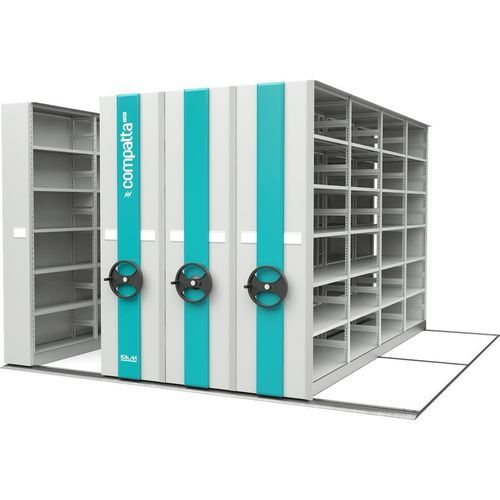

Shelving for medical applications Compatta Light

with shelvesvertical storageshuttle

Overview
Compatta Light is the semi-automatic mobile compact shelving system designed for document archiving and light medical material storage. Shelving units are mounted on mobile bases that run on floor-integrated rails; moving the bases opens an access aisle to reach stored items.

Operation
The operator can open and close aisles manually via handle, by handwheel, or by electromechanical drive with a control panel located at the front of each mobile base. The system allows selection and opening of the desired aisle for picking or depositing materials.

Advantages and operational features

• Space saving: eliminates fixed aisles and can save over 50% of floor area compared with traditional shelving.
• Increased capacity: storage capacity can increase by up to 90% for the same footprint.
• Versatility: shelving can be equipped with accessories specific to the type of material (medicine packages, personal protective equipment, medical records, X-rays, etc.).
• Aesthetic customization: front and rear panels available in various colors (standard grey) to harmonize with spaces.
• Material protection: protects from unauthorized access, light, dust and humidity.

Safety
Photoelectric barriers positioned at entry fronts and inside service aisles along the mobile bases immediately stop movement if operators or obstacles are detected. An anti-tilt system is provided and seismic-design solutions are available.

Typical applications (Healthcare)

• Document and administrative archiving (files, suspended folders, registers, etc.).
• Medicine packaging and hospital pharmacy/dispensing management.
• Medical clothing (gowns, uniforms), flat linens (sheets, pillowcases, mattress covers), sterile surgical kits.
• Personal protective equipment (PPE), disposable items and consumables.
• Electronic media and supports (CDs, DVDs, tapes, etc.).

Variants and layout
There is a DUPLEX model for creating a second level of mobile shelving when vertical exploitation is possible (e.g. high ceilings or with integrated stairs). Mobile bases can reach lengths up to 12 m.

Movement

• Manual push movement
• Handwheel operation (mechanical)
• Electro-mechanical movement with front control panel

Accessories and optional equipment

• Customizable front and rear panels
• Photoelectric safety barriers
• Sliding doors
• Locking/closure systems
• Top anti-tilt system
• Multi-level (duplex) solutions and internal stairways

Technical specifications

• System: compact mobile shelving on mobile bases (semi-automatic system for light materials and archiving)
• Movement: manual (push), handwheel, electro-mechanical with front control panel
• Mobile bases: up to 12 m length
• Rails: floor-integrated rails for base sliding
• Duplex option: possibility of a second level of mobile shelving with stair access
• Safety: photoelectric barriers at entry fronts and inside service aisles; immediate stop on obstacle detection
• Anti-tilt systems and seismic-design options available
• Material protection: protection from light, dust and humidity; controllable access
• Customization: front and rear panels in various colors; wide range of accessories for material types (medicines, PPE, documents, linens, etc.)
• Use areas: hospitals, hospital pharmacies, clinical and administrative archives, medical stores
