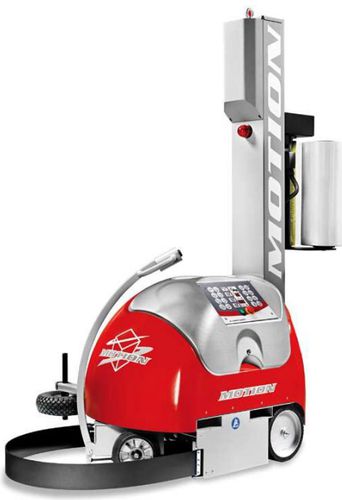

automatic wrapping robot / pallet
E-Motion

Add to MyDirectIndustry favorites
automatic wrapping robot / pallet automatic wrapping robot / pallet - E-Motion
{{requestButtons}}

Characteristics

  • Operating mode:

    automatic

  • Product applications:

    pallet

Description

TECHNICAL FEATURES:
- n. 2 AGV batteries 12 v – 110 ah serial connected
- Autonomy 150/180 pallets per charge – recharge cycle time 8-10 hours
- High frequency battery charger integrated with status indicator and external plug
- Load height sensing photocell
- Wrapping height (pallet included): 2.100mm (standard) – 2.500/2.800/3.000mm (upon request).
- Photocell sensing delay
- Indication of alarms

PARAMETERS ADJUSTABLE FROM PANEL:
- Rotation speed of robot (max. 93 m/min.)
- Carriage speed separated in ascend/descend
- Numbers of rounds separated in top/bottom
- Carriage with electromagnetic brake
- tensione differenziata salita/discesa

BASE CYCLES SELECTABLE FROM PANEL:
- Cycle ascend and descend
- Cycle only ascend
- Cycle only descend
- Top sheet function
- Wrapping cycle for large pallet
