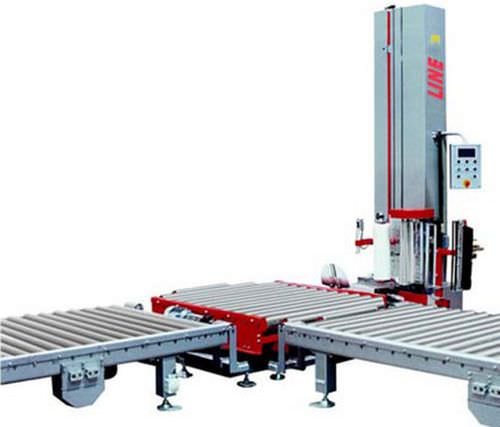

Turntable stretch wrapper LINE

automaticpallet

– Soft start and exact stop – Electromagnetic brake – SIEMENS PLC – LCD control panel – Max. Pallet 1200 x 1000 mm – Automatic load height detection photocell – Harmonics suppressor line filter. – Pallet height detection microrruptor ( manually adjustable) – Max. Production 50 pallets/hour ( in the best conditions) – Control through LCD screen of wrapping cycle, machine and manual movements of the powered elements. Graphic display in each menu for easy operation. – Electrics TRI-PAHSE 220 III or 380 + N – Number of produced pallets display – Variable speed on carriage and turntable. – Max. weight to handle 1.500 kgs Standard equipment » Interfacing for coupling infeed and outfeed lines » Suitable for any kind of stretching film » Progressive start and exact stop on turntable » Adjustable turntable speed and film reel carriage » Automatic load height detection by photocell » Film gripper cutting and hotwelding kit integrated in tuntable » PLC control and touch-screen » Harmonic suppresor filter » Electromagnetic brake » Different wrapping modes, manual override, etc. through LCD control display, processed pallets counting, failure display etc., through touch-screen » Special non-wrapping through passing cycle Options ~ Powered top platen for load stabilizing * Cutting arm: cutting +brush - cutting+hotwelding on load - cutting+hotwelding with dolly - blade cutting * Hot welding for net * Fully automatic top sheet dispenser (cabinet shared) - Safety interlocked uarding (CE ) * Special muting safety light beams (CE) * Film narrower (special programming)
