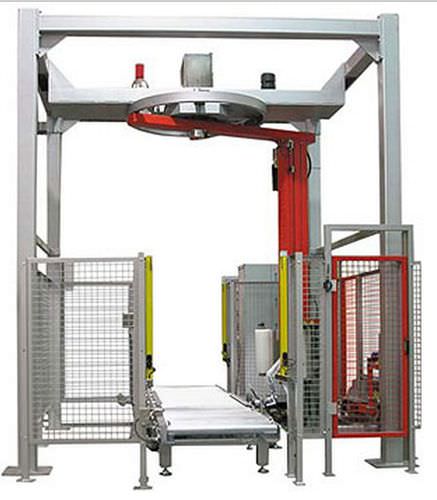

Rotary arm stretch wrapper SPIN

automaticpalletwith conveyor

– 2 x roller conveyor infeed/outfeed integrated in SPIN. – Siemens S7 200PLC control and LCD display. – Soft start and adjustable rotating arm speed. – Soft start and adjustable carriage speed. – Interfacing for coupling infeed and outfeed lines. – Different wrapping modes, manual override, etc. through LCD control display. – Interlocked safety fences fitted with muting light beams. – Powered film prestretch (fixed ratio type: supplied with 4 sets of gears). – Automatic load height detection by photocell. – Obstacle detection for rotating arm. – Automatic film gripper and cutting arm device. – Hot wire film cutting system. – Special non-wrapping through passing cycle. – Filter in power line to avoid harmonic Rotating arm automatic wrapping machine The SPIN fully automatic stretch film wrapping machine is the most modern and fastest wrapper from DNC. Its basic structure consists of a group of building blocks standing on four masts, an electronic control cabinet integrated in the structure and interlocked safety fences bolted to the frame. This renders the machine set up and commissioning real easy and fast. The machine does not require floor reinforcing. The unit integrates a powered roller conveyor stretch for loads infeed and outfeed and is fitted with a rotating arm where the film carries travels up and down, so that the load remains steady while film is being wrapped around it. The SPIN features an LCD display where all necessary wrapping parameters may be programmed, and the machine status can be checked.
