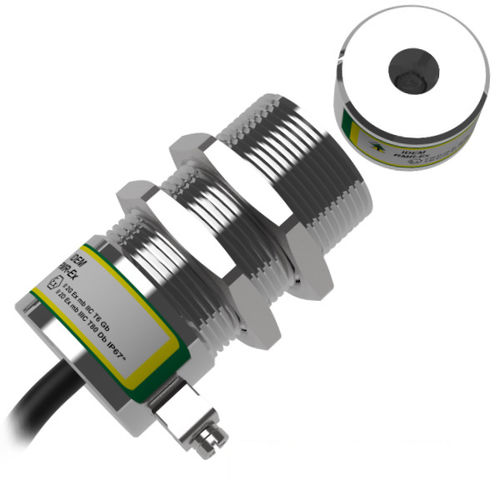

3-pole switch RM-Ex

explosion-proofthreadedstainless steel

IDEM’s RM-Ex Explosion Proof Non Contact Switch is manufactured with a stainless steel, M30 x 1.5mm threaded body making it suitable for industry applications where the threat of explosion exists, particularly in the hazardous conditions created within the Petro-Chemical, Food Processing and Pharmaceutical industries. The RM-Ex is designed with highly reliable power reed switching elements, contacts de-rated and protected by internal fuses with high tolerance to guard misalignment. All electrical switching contacts are fully encapsulated within the switch and have a Stainless Steel 316 back plate to prevent tampering with the internal components. Manufactured with a magnetic sensing system which provides a wide sensing distance and provides a high tolerance to misalignment after sensing. The RM-Ex can be fitted behind stainless steel fittings and can operate in extreme environments of temperature and moisture. The switch comes pre-wired with either 5M or 10M of cable and is available with 2NC 1NO circuits. Features:   • Safety Contacts: 2 N/C • Auxiliary: 1 N/O • Body Housing: 316 Stainless Steel, Mirror Polished • Cable Length: 5m and 10m (Longer upon request)
