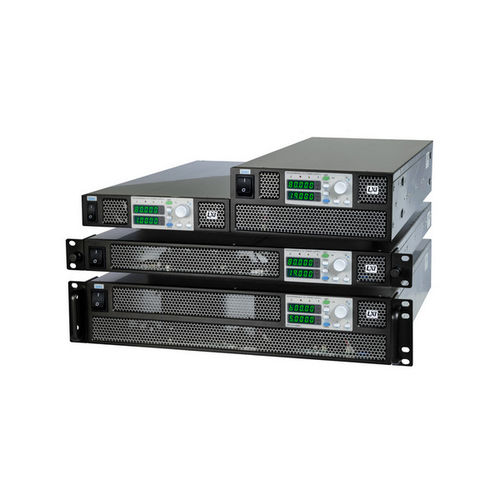

AC/DC power supply DSP-HR series
adjustableprogrammableexternal

AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
adjustable
Other characteristics
programmable, external, 1U, 2U, built-in, switching
Power

Min.: 750 W

Max.: 3,000 W

Input voltage

Min.: 100 V

Max.: 240 V

Output voltage

Min.: 6 V

Max.: 400 V

Current

Min.: 1 A

Max.: 400 A

Description

Up to 52 models: 6V~600V/1A~400A are available for selection. 5 digits of current and voltage meter. Max. output current up to 2000A (5 units in parallel). Switching mode, high density, and convenience for installation to 19” rack, 750W in 1U half width, 1.5kW in 1U/2UH, 3kW in 2U height. Non-gap stacking, no ventilation holes at the cover and bottom plate of the power supply. Universal Input Voltage 1U / 1UH / 2UH :100-240Vac,50/60Hz, 1P2W+GND continuous operation. 2U :190-240Vac,50/60Hz, 1P2W+GND continuous operation. Constant Voltage / Constant Current with automatic crossover. IDRC DSP Series 1U Programmable DC Power Supply uses digitalized design : High resolution of D/A (16 bits)setting output Voltage & Current, High resolution of A/D (24 bits H.W.) measurement output Voltage & Current. Up to 5 units in parallel and 2 units in series, equipped with active current sharing. Active power factor correction. The interleaved control technique lowered the ripple and noise. In addition shorten the transient response. Complete Protection : OVP, OCP,OTP. Definable output voltage ramp up and down with adjustable time. DSP-HR Series can store 16 sets of memories; memories can be recalled manually in front panel or by external recall control. Last setting retainable upon next power on. KEY LOCK setting. Embedded 3 RISC Micro-Controllers. Built-in remote sensing with max. 5V compensation Standard LXI and Isolation RS-485 Interface, optional GPIB interface. RS-485 baud rate up to 115200 bps GPIB are compatible with SCPI. Provide IVI-COM driver, support SCPI commands.

Catalogs

dsp-hde
dsp-hde
16 Pages
