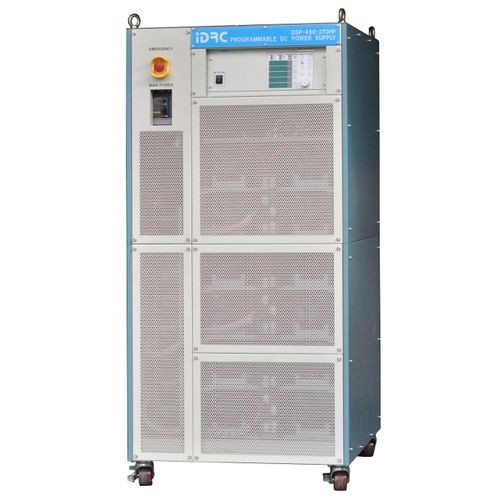

AC/DC power supply DSP-HP series
adjustableprogrammabledigital

AC/DC power supply
AC/DC power supply
Add to favorites
Compare this product


Characteristics

Type
AC/DC
Output
adjustable
Other characteristics
programmable, digital, built-in
Power

Min.: 40,000 W

Max.: 160,000 W

Output voltage

Min.: 80 V

Max.: 1,000 V

Current

Min.: 40 A

Max.: 2,000 A

Description

Up to 60 models, 80V~1000V / 40A~2000A / 40kW~160kW, are available for selection. Up to 5 units in parallel (800kW) and 2 units in series. Max. current 10000A in parallel. Constant voltage / constant current with automatic crossover. Optional constant power function. IDRC DSP Series Programmable DC power supply uses digitalized design : High resolution of D/A (16 bits)setting output voltage & current, High resolution of A/D (24 bits H.W.) measurement output voltage & current. True Watt and True RMS current measurement. Complete Protection : OVP, OCP,OTP, Reversed polarity protection. Definable output voltage ramp up and down with adjustable time. DSP-HP Series can store 20 sets of memories, can be recalled manually in front panel. 4500 sets of sequence memories: it can store parameters of Voltage, current and time in every set and operate in order. Last Panel Set. KEY LOCK setting. Embedded 3 RISC micro-controllers. Built-in remote sensing with max. 5V compensation. Digital Encoder Knobs, Pushbutton Settings. Standard GPIB and Isolation RS-485 Interface.
