High-pressure cleaning lance ZL.XX-GJ series

Overview

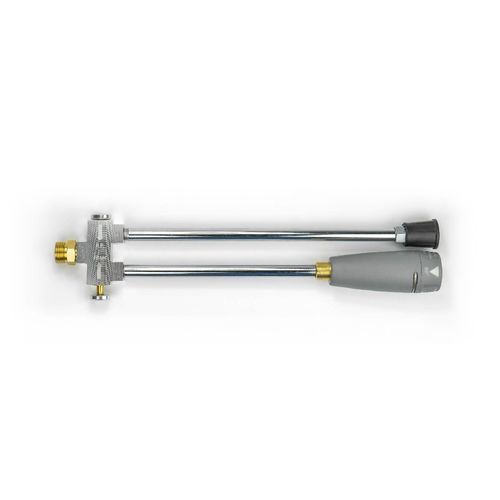

Double lance with foam head (LANCIA DOPPIA CON TESTINA SCHIUMOGENA). This lance is designed for foam application in high-pressure cleaning systems; it accepts a separate inner foaming head nozzle and standard tip nozzles.

Product details
Inner foaming head nozzle is not included. Select and assemble the tip nozzle (page 459) with a 0° spray angle and a flow rate compatible with your machine or system, and fit it into the inlet of the foaming head. Upstream of the foaming head provide a high-pressure detergent ejector or a dosing pump to ensure correct foam injection and mix.

Technical data

• ZL.XX-GJ405L — Rinse nozzle flow rate: 040
• ZL.XX-GJ455L — Rinse nozzle flow rate: 045
• ZL.XX-GJ505L — Rinse nozzle flow rate: 050

Technical features

• Product name: Double lance with foam head
• Alternate name (IT): LANCIA DOPPIA CON TESTINA SCHIUMOGENA
• Model codes: ZL.XX-GJ405L, ZL.XX-GJ455L, ZL.XX-GJ505L
• Rinse nozzle flow rates available: 040, 045, 050
• Max working pressure: 200 bar
• Lance length: 30 cm
• Max operating temperature: 60°C
• Inlet thread: M22x1,5
• Inner foaming head nozzle: not included (select and assemble separately)
