Compressed air Nebulizer Click Clock

Overview

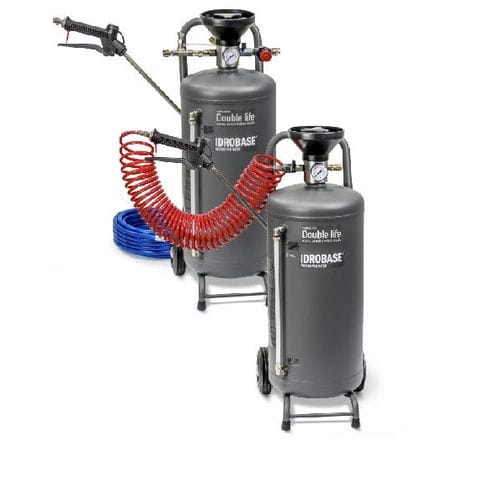

The Click Clock spray and foam nebulisers feature a removable funnel and are available in 24L and 50L capacities. Constructed in painted steel with an internal epoxy coating and an optional external AISI 304 stainless steel tank, they offer a compact footprint for professional cleaning applications.

Airspray equipment

• Spray gun (internal parts Viton® + stainless steel)
• 600 mm lance for 24L tank, 900 mm lance for 50L tank
• Brass fan spray nozzle (lance)
• Pressure gauge
• Safety valve
• Ball valve
• 10 m Rilsan spiral hose with anti-twist connection
• Max pressure: 8 bar

Airfoam equipment

• Spray gun (internal parts Viton® + stainless steel)
• 600 mm lance for 24L tank, 900 mm lance for 50L tank
• Stainless steel lance with one foam fan spray nozzle
• Pressure gauge
• Safety valve
• Manual release valve and air pressure regulator
• Air suction valve
• Detergent suction valve
• Ball valve
• 10 m PVC hose
• Max pressure: 8 bar

Technical data
CODE | Model | Colour | Capacity
8.4002-GRS | Airspray 24 Double Life Click Clock | Dark Grey | 24L
8.4003-GRS | Airspray 50 Double Life Click Clock | Dark Grey | 50L
8.4004-GRS | Airfoam 24 Double Life Click Clock | Dark Grey | 24L
8.4009-GRS | Airfoam 50 Double Life Click Clock | Dark Grey | 50L

Technical features

• Removable Click Clock funnel with sealing coupling
• Zinced steel cap with heavy-duty thread (optional CDR.1456)
• Click Clock funnel loading system enabling increased water filling and easy refill with a standard water hose
• Impact resistance increased by 70%
• Precision air pressure regulator with protective galvanization
• External tank option in AISI 304 stainless steel
• Metal manifold: +15% resistance
• Red detergent level indicator
• Designed to withstand transport
• Up to 40% reduction in maintenance time

Characteristics / technical specifications

• Series name: Click Clock
• Available capacities: 24L, 50L
• Body: painted steel with internal epoxy coating
• External tank option: AISI 304 stainless steel
• Colour: Dark Grey
• Max working pressure: 8 bar
• Lance lengths: 600 mm (24L) / 900 mm (50L)
• Hose: 10 m Rilsan spiral hose (airspray) or 10 m PVC hose (airfoam)
• Nozzle types: brass fan spray nozzle (airspray); stainless steel foam fan spray nozzle (airfoam)
• Key codes/models: 8.4002-GRS, 8.4003-GRS, 8.4004-GRS, 8.4009-GRS
• Notable features: removable Click Clock funnel, Viton® internal parts in spray gun, precision air pressure regulator, reduced maintenance time
