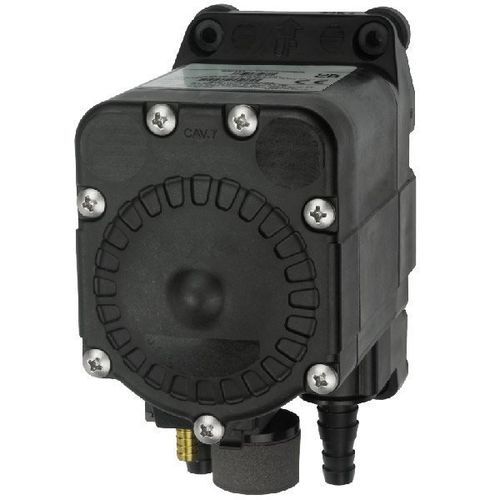

Diaphragm pump CDR.FJ001

for chemicalsfor liquidspneumatic

Overview
Pneumatic pump suitable for foam-washing units, detergent dosing, liquid transfer, spray applications, cooling circuits, filtrations and dispensers.

Description
Self-priming pneumatic dosing pump with double Santoprene membrane and air discharge with silencer. Propylene pump body resistant to chemical products, fitted with 4 anti-vibration feet and a Hastelloy spring. The unit can run dry without damage. Maximum air inlet pressure must not exceed 8.3 bar. For most applications do not exceed a suction height of 1.2 m above the liquid level. Product hose holder and air inlet feature quick-release connections for fast assembly.

Warning
Not compatible with oils, solvents, products containing solvents, D-Limonene or aromatic hydrocarbons. Use a suction filter of at least 40 mesh (350 micron) to retain coarse foreign particles.

Technical data
CODE | Membrane | Air inlet pressure | Flow rate | Vacuum height
CDR.FJ001 | Santoprene | 1.4–6.9 bar | max 18.9 l/min | dry 4.5 m / primed 6 m

Features / technical specifications

• Self-priming pneumatic dosing pump
• Double membrane (Santoprene)
• Air discharge with silencer
• Propylene pump body resistant to chemical products
• 4 anti-vibration feet
• Spring made of Hastelloy
• Can run dry without damage
• Maximum air inlet pressure: 8.3 bar
• Recommended maximum suction height: 1.2 m above liquid level
• Product hose holder and air inlet with quick-release for easy assembly
• Not compatible with oils, solvents, products containing solvents, D-Limonene and aromatic hydrocarbons
• Recommended suction filter: 40 mesh (350 micron)
• Code: CDR.FJ001
