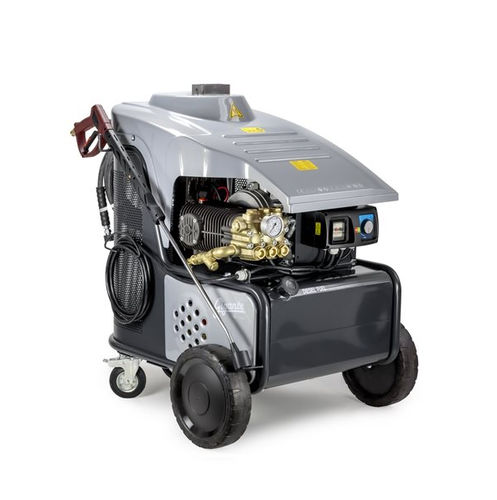

Hot water high-pressure cleaner Gigante

steamelectricthree-phase

Product overview
The Gigante 15hp is a by‑pass high‑pressure washer designed for industrial cleaning tasks. Available in two configurations (ZX.2218 and ZX.2219) to match different pressure/flow requirements while supporting continuous professional use.

Highlights

• HOUR METER — For scheduling preventive maintenance
• INDUSTRIAL PUMP — 1450 rpm pump designed for continuous operation
• STAINLESS STEEL — AISI 430 industrial heater with inner jacket; water inlet tank in AISI 304
• ELECTRICAL PANEL — Simple, safe controls with magneto‑thermal protection

Technical data (table)

• ZX.2218 — Model 1450 170/33 | Version: By‑pass | Pressure: 170 bar | Flow rate: 33 l/min | Rpm: 1450 | Temperature: 45–70°C* | Power: 15 hp / 11 kW (3x400V‑50Hz) | Weight: 225 kg | Preventive maintenance 750 hrs: ZX.75IBG06 | 1500 hrs: ZX.150IBG06
• ZX.2219 — Model 1450 300/18 | Version: By‑pass | Pressure: 300 bar | Flow rate: 18 l/min | Rpm: 1450 | Temperature: 45–80°C* | Power: 15 hp / 11 kW (3x400V‑50Hz) | Weight: 235 kg | Preventive maintenance 750 hrs: ZX.75IBG12 | 1500 hrs: ZX.150IBG12

Notes
*Steam stage: 140°C. Data, tables and images are indicative; the manufacturer may modify specifications without prior notice.

Technical features

• Tubular frame in stove‑enameled steel
• Thermoformed polystyrene cover
• Industrial pump 1450 rpm with crankshaft, brass head and 3 ceramic plungers
• High‑efficiency electric motor 1450 rpm, 50 Hz
• Electrical panel with magneto‑thermal switch, hour meter and 5 m neoprene power cable
• Brass inlet water filter
• Fuel filter with water drain valve
• Fuel tank: 20 L
• Heater with stainless steel inner jacket and combustion chamber
• Dimensions (W x L x H): 790 x 900 x 1025 mm

Standard equipment

• High‑pressure hose 10 m with screw quick couplings
• Industrial spray gun
• Professional lance 900 mm (800 mm straight stainless steel for ZX.2219)
• High‑pressure nozzle 25° high resolution

Optionals

• CDR.7062 — Nipples M22x1.5 M ø14, brass. Pressure 220 bar, flow 40 l/min, temperature 150°C
• ZX.15W40-1 — Mineral oil SAE 15W‑40, for high‑pressure pumps, 1 L
• CDR.1593-120 — Professional rotating nozzle, inlet G1/4" F, max pressure 400 bar, max temperature 90°C
• ZX.7109 — CdR 55 lance, vented grip, with bend — outlet 1/4" NPT‑F, chromed steel
• ZN.EC100B4N4N — High‑pressure hose R2 3/8" 10 m, M24x1.5 F‑F
• ZX.7110 — CdR 55 lance, vented grip, with bend — outlet 1/4" NPT‑F, chromed steel
• ZN.EC200B4N4N — High‑pressure hose R2 3/8" 20 m, M24x1.5 F‑F
• CDR.1538-SP — Service kit VHP 39

Specifications / technical specifications

• Codes: ZX.2218; ZX.2219
• Models: 1450 170/33 (ZX.2218); 1450 300/18 (ZX.2219)
• Version: By‑pass
• Pressure: 170 bar (ZX.2218); 300 bar (ZX.2219)
• Flow rate: 33 l/min (ZX.2218); 18 l/min (ZX.2219)
• Rpm: 1450
• Temperature: 45–70°C (ZX.2218); 45–80°C (ZX.2219); Steam stage: 140°C
• Power: 15 hp / 11 kW (3x400V‑50Hz)
• Weight: 225 kg (ZX.2218); 235 kg (ZX.2219)
• Preventive maintenance 750 hrs: ZX.75IBG06 (ZX.2218); ZX.75IBG12 (ZX.2219)
• Preventive maintenance 1500 hrs: ZX.150IBG06 (ZX.2218); ZX.150IBG12 (ZX.2219)
• Dimensions (W x L x H): 790 x 900 x 1025 mm
• Fuel tank: 20 L
