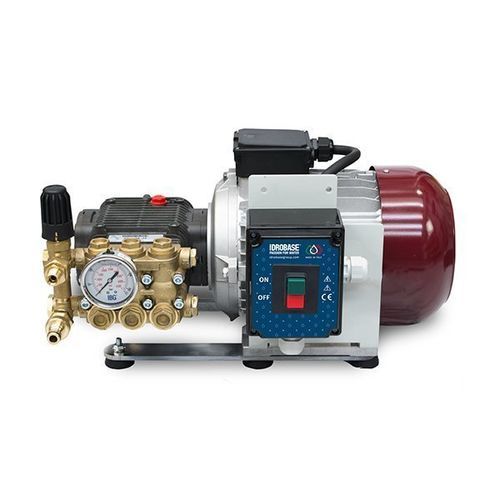

Plunger pumping unit ZX.104 series

waterwith electric motorself-priming

Product description
Professional motor-pump unit supplied pre-assembled and tested. Designed for industrial cleaning and workshop applications, the unit is compact and easy to position, allowing effective and safe washing cycles up to 4 hours per day. Available in by-pass and Total Stop versions to match process requirements.

Technical data (table)
CODE | Model | Version | Pressure | Flow rate | Rpm | Power | Weight | Maintenance set 500 hrs | Maintenance set 1000 hrs
ZX.1040 | 1450 110/11 F | By-pass | 110bar | 11l/min | 1450 | 3,0hp/2,2kW (1x230V-50Hz) | 33.7kg | ZX.50IBG02 | ZX.100IBG02
ZX.1040-TS | 1450 110/11 F TS | Total Stop | 110bar | 11l/min | 1450 | 3,0hp/2,2kW (1x230V-50Hz) | 34.5kg | ZX.50IBG02 | ZX.100IBG02
ZX.1042 | 1450 150/15 F | By-pass | 150bar | 15l/min | 1450 | 5.5hp/4,0 kW (3x400V-50Hz) | 36.8kg | ZX.50IBG03 | ZX.100IBG03
ZX.1042-TS | 1450 150/15 F TS | Total Stop | 150bar | 15l/min | 1450 | 5.5hp/4,0kW (3x400V-50Hz) | 37.5kg | ZX.50IBG03 | ZX.100IBG03
ZX.1043 | 1450 200/15 F | By-pass | 200bar | 15l/min | 1450 | 7.5hp/5,5kW (3x400V-50Hz) | 46.3kg | ZX.50IBG03 | ZX.100IBG03
ZX.1043-TS | 1450 200/15 F TS | Total Stop | 200bar | 15l/min | 1450 | 7.5hp/5,5kW (3x400V-50Hz) | 47kg | ZX.50IBG03 | ZX.100IBG03

Technical features

• Motor base: chromed steel with anti-vibration feet for stable installation
• Professional pump: 1450 rpm, crankshaft design, brass head, 3 ceramic plungers; includes bolt unloader valve and glycerine-filled pressure gauge
• Electric motor: 1450 rpm 50Hz, IP55 electrical enclosure with ON/OFF circuit breaker
• Electric cable: 5 m

Standard equipment

• High-pressure hose: 8 m, fittings G3/8" F-F
• Professional spray gun, inlet G3/8" M
• Professional lance: 900 mm
• High-resolution nozzle: 25°

Available versions / Options

• ZX.1040 (1450 110/11 F) - By-pass
• ZX.1040-TS (1450 110/11 F TS) - Total Stop
• ZX.1042 (1450 150/15 F) - By-pass
• ZX.1042-TS (1450 150/15 F TS) - Total Stop
• ZX.1043 (1450 200/15 F) - By-pass
• ZX.1043-TS (1450 200/15 F TS) - Total Stop

Technical specifications

• Series: 1450 series
• Operating pressure range: 110 bar, 150 bar, 200 bar depending on model
• Flow rates: 11 l/min (110 bar models), 15 l/min (150/200 bar models)
• Pump type: crankshaft pump with brass head and 3 ceramic plungers
• Motor speed: 1450 rpm
• Power: from 3.0 hp / 2.2 kW (single-phase 1x230V-50Hz) up to 7.5 hp / 5.5 kW (three-phase 3x400V-50Hz) depending on model
• Protection: electric motor IP55 with ON/OFF circuit breaker
• Weight range: 33.7 kg to 47 kg depending on model and configuration
• Standard accessories: 8 m high-pressure hose (G3/8" F-F), professional spray gun, 900 mm lance, 25° nozzle
• Maintenance kits: ZX.50IBG02 / ZX.100IBG02 (for ZX.1040 series) and ZX.50IBG03 / ZX.100IBG03 (for ZX.1042 and ZX.1043 series)
