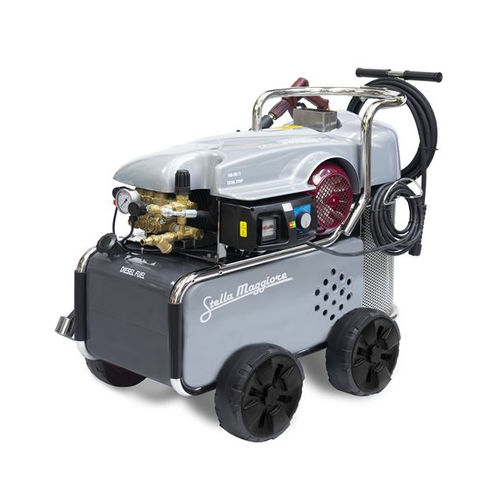

Hot water high-pressure cleaner Stella Maggiore

electricthree-phasesteel

Product overview
The Stella Maggiore is a hot water industrial pressure washer built for continuous heavy-duty operation. Its belt drive between motor and pump reduces mechanical stress, increasing pump service life. The unit features a 1000 rpm industrial pump and is designed for extended runs, including up to 24 consecutive hours of use.

Highlights

• Industrial pump 1000 rpm suitable for continuous operation
• Belt motor-pump drive to reduce mechanical stress and extend pump life
• Industrial heater with AISI 430 external stainless steel cover (stainless steel coil optional)
• Operator comfort: industrial spray gun with athermic lance

Technical data (table)
CODE | Preventive maintenance 1500 hrs | Preventive maintenance 750 hrs | Model | Version | Pressure | Flow rate | Rpm | Temperature | Power | Weight
ZX.1395-TS | ZX.150IBG08 | ZX.75IBG08 | 1000 200/15 TS | Total Stop | 200 bar | 15 l/min | 1000 | 45 - 90°C * | 7.5 hp / 5.5 kW (3x400V-50Hz) | 188 kg
* Steam stage: 140°C

Technical features

• Tubular chromed steel frame
• Thermoformed polystyrene outer cover
• Industrial 1000 rpm pump with crankshaft, bronze connecting rods, brass head and 3 ceramic plungers; exclusive water and oil sealing system
• High-efficiency 1000 rpm electric motor with IP55 junction box, magneto-thermal ON/OFF switch and 5 m power cable
• Belt drive between motor and pump
• Burner with delayed ignition and 14 L fuel tank with level indicator
• Heater with external AISI 430 stainless steel coating, galvanised inner jacket and stainless steel chimney
• Dimensions (WxLxH): 570 x 1200 x 860 mm

Standard equipment

• 10 m h.p. hose with screw quick couplings
• Industrial spray gun
• 900 mm professional lance
• 25° high-resolution h.p. nozzle

Optionals

• CDR.7062: Brass nipples M22x1.5 M ø14 — 220 bar, 40 l/min, 150°C
• ZX.15W40-1: Mineral oil SAE 15W-40 for high-pressure pumps, 1 L
• ZX.0519-045: Professional sandblasting kit G1/4" F — 250 bar, 40 l/min; includes brass head with WIDIA insert, 4 m suction hose and galvanised probe
• CDR.0466: Service kit VB 56
• CDR.0539: Professional rotating nozzles G1/4" F — max 255 bar, max 100°C
• ZX.7117: CdR 80 lance with moulded handle and bend — outlet 1/4" NPT-F, chromed steel
• ZX.7118: CdR 80 lance with moulded handle and bend — outlet 1/4" NPT-F, chromed steel
• ZN.DC100B3P3P / ZN.DC150B3P3P / ZN.DC200B3P3P: High-pressure hoses 400 bar, R2 5/16" - DN8 with fittings and bend restrictors (BLACK)
• C.MEG15045: H.p. nozzle 1/4" NPT-M, AISI 416 stainless steel
• ZL.1V755Z: Long double lance kit 1 with PRO1 M22x1.5 M spray gun, anodised aluminium diverter, professional foam lance ø2.1 mm with detergent injector ø1.4 mm and non-return valve filter

Technical specifications

• Code: ZX.1395-TS
• Commercial name / Model: Stella Maggiore
• Model designation: 1000 200/15 TS
• Version: Total Stop
• Pressure: 200 bar
• Flow rate: 15 l/min
• Rpm: 1000
• Temperature: 45 - 90°C (steam stage 140°C)
• Power: 7.5 hp / 5.5 kW (3x400V-50Hz)
• Weight: 188 kg
• Dimensions (WxLxH): 570 x 1200 x 860 mm
• Pump: Industrial 1000 rpm pump with crankshaft, bronze connecting rods, brass head, 3 ceramic plungers and exclusive sealing system
• Motor: 1000 rpm 50Hz high-efficiency motor, IP55 junction box, magneto-thermal switch, 5 m power cable
• Drive: Belt drive between motor and pump
• Fuel / Burner: Delayed-ignition burner; 14 L fuel tank with level indicator
• Heater: External AISI 430 stainless steel coating; galvanised inner jacket; stainless steel chimney
