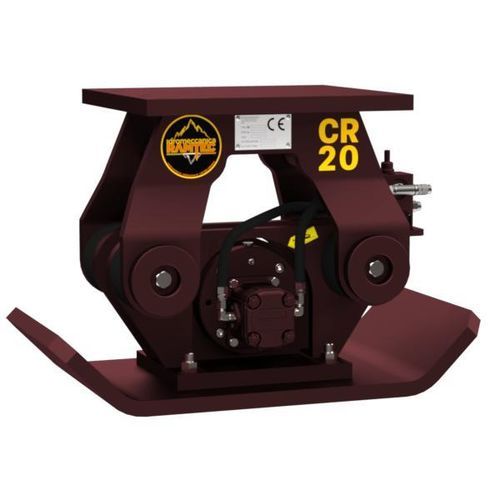

Forward travel vibratory plate CR 20

for excavatorsfor skid steer loaderspile driving

Description
CR 20 is the smallest vibrating plate compactor in Idromeccanica Ramtec’s range. At 170 kg (375 lb) it is compact, easy to install and operate, and designed for attachment to skid steers or mini excavators with carrier weights from 1 to 2.5 t. The unit can be fitted with a standard top bracket, a quick adapter coupler or a skid steer plate. The lower plate is bolted (not welded) and can be replaced with a custom piledriver plate, enabling quick conversion to a piling tool for driving piles of various sizes.

Compatibility / Mounting

• Carrier machines: skid steer and mini excavator (1 – 2.5 t)
• Mounting options: standard top bracket, quick adapter coupler, skid steer plate
• Lower plate: bolted and replaceable allowing conversion to a piledriver plate

USA SPECS
Carrier weight: 1 – 2.5 t
Equipment weight: 375 lb
Required oil supply: 3 – 5 gal/min
Oil pressure: 1450 – 1740 psi
Rounds per minute: 1200 – 2200
Force to the ground: 18 kN
Standard base plate: 15.7 x 17.7 inch

METRIC SYSTEM
Carrier weight: 1 – 2.5 t
Equipment weight: 170 kg
Required oil supply: 12 – 20 L/min
Oil pressure: 100 – 120 bar
Rounds per minute: 1200 – 2200
Force to the ground: 18 kN
Standard base plate: 400 x 450 mm

Technical characteristics / specifications

• Model: CR 20
• Type: Hydraulic plate compactor and piledriver (convertible)
• Equipment weight: 170 kg (375 lb)
• Recommended carrier weight: 1 – 2.5 t
• Required oil supply: 12 – 20 L/min (3 – 5 gal/min)
• Oil pressure: 100 – 120 bar (1450 – 1740 psi)
• Rotation / Rounds per minute: 1200 – 2200
• Force to the ground: 18 kN
• Standard base plate dimensions: 400 x 450 mm (15.7 x 17.7 inch)
• Lower plate: bolted, replaceable with custom piledriver plate
• Mounting: standard top bracket, quick adapter coupler or skid steer plate
