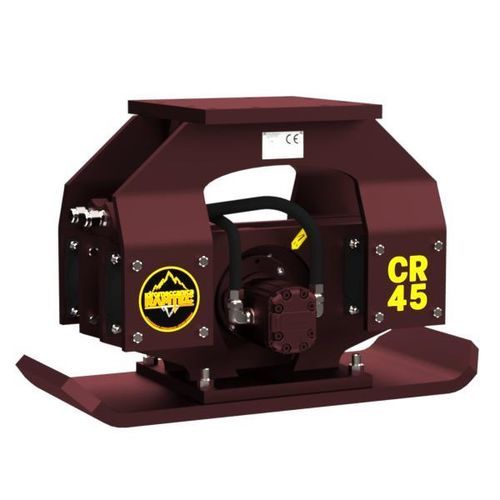

Forward travel vibratory plate CR 45

for excavatorsfor skid steer loaderspile driving

Description
The hydraulic vibrating plate compactor CR 45 weighs 430 kg and is designed for attachment to mini loaders, backhoes or mini excavators in the 5–9 t class. The lower plate is bolted (not welded) and can be replaced by a custom piledriver plate, enabling conversion from plate compactor to piledriver for driving piles of various dimensions. The CR 45 can be mounted using a standard top bracket, a quick adapter coupler or a skid steer plate, offering flexibility across carrier types.

Mounting options

• Standard top bracket
• Quick adapter coupler
• Skid steer plate

Compatible carriers

• Mini loader (approx. 5 t)
• Backhoe (5–9 t)
• Mini excavator (5–9 t)

USA SPECS
Carrier weight: 5 - 9 t
Equipment weight: 950 lb
Required oil supply: 5 - 13 gal/min
Oil pressure: 1300 - 1885 psi
Rounds per minute: 1000 - 1500
Force to the ground: 50 kN
Standard base plate: 15.7 x 31.5 inch

METRIC SYSTEM
Carrier weight: 5 - 9 t
Equipment weight: 430 kg
Required oil supply: 20 - 50 L/min
Oil pressure: 90 - 130 bar
Rounds per minute: 1000 - 1500
Force to the ground: 50 kN
Standard base plate: 400 x 800 mm

Technical specifications

• Model: CR 45
• Function: Hydraulic plate compactor and piledriver (convertible by replacing lower plate)
• Equipment weight: 430 kg (950 lb)
• Carrier recommended weight: 5 - 9 t
• Required oil supply: 20 - 50 L/min (5 - 13 gal/min)
• Oil pressure: 90 - 130 bar (1300 - 1885 psi)
• Operating speed: 1000 - 1500 rpm
• Force to the ground: 50 kN
• Standard base plate size: 400 x 800 mm (15.7 x 31.5 inch)
• Lower plate: bolted (replaceable), allows custom piledriver plate
• Mount options: standard top bracket, quick adapter coupler, skid steer plate
