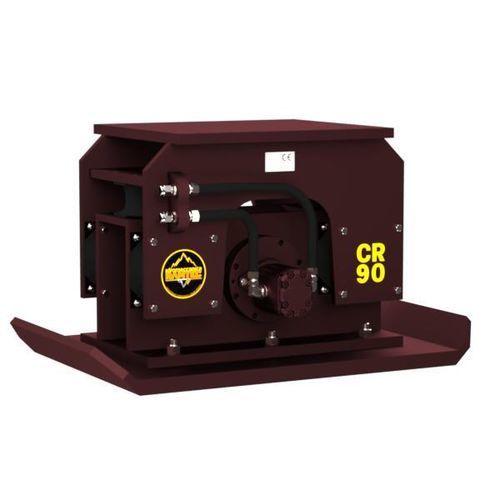

Forward travel vibratory plate CR 90

for excavatorspile drivingcompacting

Description
CR90 is the biggest vibrating plate compactor in Idromeccanica Ramtec’s range. It weighs 900 kg and is designed for straightforward installation and operation. The unit connects to excavators from 12 t to 20 t using a standard top bracket or a quick coupler. The lower plate is bolted (not welded) and can be replaced with a customizable piledriver plate, enabling pile-driving of different dimensions.

Mounting / Compatibility

• Mountable on excavators: 12-20 t
• Connection options: standard top bracket or quick coupler

USA SPECS
Carrier weight: 12 – 20 t
Equipment weight: 1989 lb
Required oil supply: 13 – 26 gal/min
Oil pressure: 1450 – 2465 psi
Rounds per minute: 1000 – 1700
Force to the ground: 110 kN
Standard base plate: 31.5 x 39.4 inch

METRIC SYSTEM
Carrier weight: 12 – 20 t
Equipment weight: 900 kg
Required oil supply: 50 – 100 L/min
Oil pressure: 100 – 170 bar
Rounds per minute: 1000 – 1700
Force to the ground: 110 kN
Standard base plate: 800 x 1000 mm

Technical specifications

• Model: CR 90
• Brand: Idromeccanica Ramtec
• Equipment weight: 900 kg (1989 lb)
• Carrier weight range: 12 - 20 t
• Required oil supply: 50 - 100 L/min (13 - 26 gal/min)
• Oil pressure: 100 - 170 bar (1450 - 2465 psi)
• Operating speed (rounds per minute): 1000 - 1700 rpm
• Force to the ground: 110 kN
• Standard base plate size: 800 x 1000 mm (31.5 x 39.4 inch)
• Lower plate: bolted (not welded) and replaceable with a customizable piledriver plate
• Functionality: hydraulic vibrating plate compactor and piledriver (drive piles of different dimensions)
