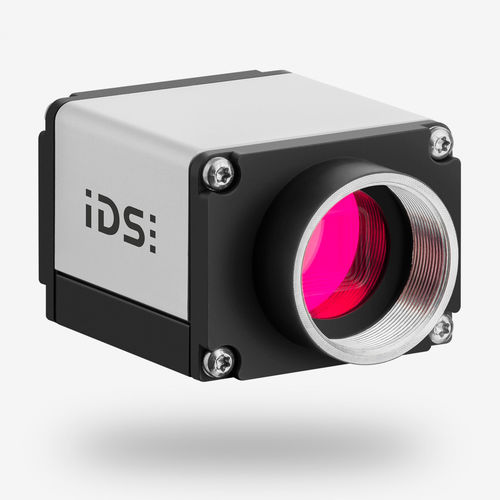

Area scan camera uEye SE GigE

digitalHDRlaboratory

Compact and robust: The uEye SE ("Standard Edition") is the all-round industrial camera with a broad sensor portfolio and countless variants. It has proven itself in industrial use for over a decade. It is consistently designed to support even large-format and fast CMOS sensors. The cameras deliver data at full GigE speed and, thanks to PoE ("Power over Ethernet"), also enable single-cable operation up to 100 meters. In addition, the cameras can be operated with an external 12-24 V power source.
In addition to the screwable RJ45 network connector, the uEye SE GigE cameras have an 8-pin Hirose connector for trigger and flash (optically decoupled) as well as two GPIOs (each with 3.3 V), which enable numerous industrial applications.

All uEye SE models are available either as a housing variant with a special, extremely dust-tight sensor seal or as a board level camera with various lens mount options. The range of applications is therefore very wide and covers fields such as automation, mechanical engineering, the packaging industry and traffic monitoring.

The uEye SE cameras can be operated either with 12-24 V or alternatively via Power-over-Ethernet (PoE). PoE enables practical single-cable operation up to a maximum length of 100m. The host PC load is also significantly reduced by pixel pre-processing (e.g. definable LUT and gamma) in the camera.

The uEye SE cameras are available in different versions - including compact, sturdy metal housings and practical board level versions with or without front flange. This makes them a popular choice for a wide range of applications.
