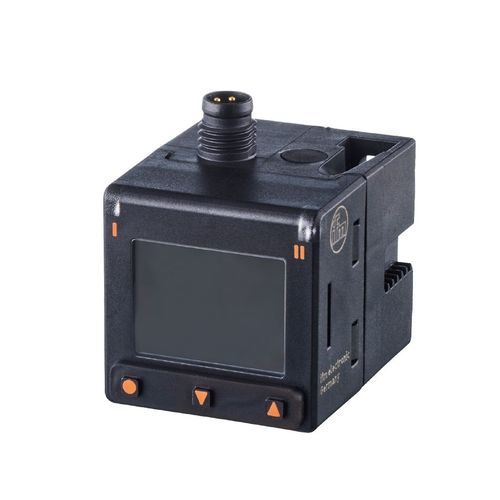

Relative pressure sensor PQS812 PQ-010-KHR18-MFPKG/AS/

vacuumIO-Linkautomotive

Pressure sensor for pneumatic applications The PQ Cube is the ideal choice for pneumatic applications of any kind. The measuring cell used so far and which has already distinguished itself in previous PQ generations through its high resistance to dust and dirt, is also used in the new version. Not only the inner values are convincing. The 1” display clearly shows process values in various layouts, while switch points are signalled via the LEDs. Set-up is also quick and easy with the installation wizard. Product benefits of the PQ Cube Coated measuring cell The coated and sealed silicon measuring cell from ifm offers excellent media resistance and always works reliably even under adverse environmental conditions. Especially in industrial applications with vacuum grippers, the air is often contaminated with dust. This does not affect the measuring cell any more than compressed air containing oil. Full graphic 1” TFT display and switch point LEDs Process values, switch points and other information available via IO-Link can be read at a glance on the display. Different display layouts with a clear red-green colour change can be flexibly selected for visualisation. Installation wizard The PQ pressure sensor can be set up quickly and easily using the installation wizard. The wizard guides you through the set-up process in a total of 9 languages and asks for all the relevant attributes for your application. Subsequent and further changes can be made flexibly via IO-Link or on the device itself using the 3 buttons.
