Warm-air-dryers are used for drying and pre-heating solvent-free synthetic granulates.
Advantages here are:
enlarged plasticizing capacity
quality improvement
quality assurance
improved flow behaviour
Surface humidity at granulate will be achieved with non-hygroscopic synthetics (e.g. PE, PP,PS, etc.) with unfavourable storage, large temperature differences and condensate with high air humidity. A pre-heating is necessary to remove condense humidity. Several machinery can be served by one dryer.
Details
operating voltage: 3 x 400 Volt, 3-phases/PE 50 Hz
control voltage: 230 Volt via transformer
temperature control: industrial electronic Controller, range: 0 up to 160 °C, measuring element: Pt 100
temperature protection: capillary Thermostat , range: 60 up to 200 °C, heater turn-off and visual signal with over heat
capacity circuit: conductor
permanent sound level: < 70 db (A) measured in front of 1 m to the terminal box at 1.6 m height
thermal safety: class 2 as per IEC 519-2 section 13.4
outer tank material: sheet steel
standard outer tank painting: RAL 6011 reseda-green structure

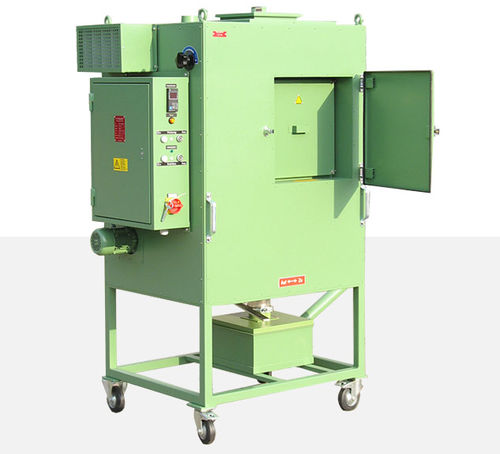

cleaning port: 400 x 400 mm at side wall
internal tank material: 1.4541 or 1.4301 stainless steel
air regulation: adjustable fresh-, circulation and exhaust air slide
exhaust chimney: Ø 70 mm
insulation: 60 mm all sides
