Crucible Ovens are for baking out ramming mixtures to reduce the holding time after revision. The drying is improved with a low pressure blower a quick re-start of the crucible is given.
Options
voltage and wattage variations
operating temperature variations
painting as per customer request
other dimensions
flange supporting as per customer specification
1.4876 or 2.4858 Tubular Heater material
labelling and documentation in various languages
temperature control with self-improvement function, process alarm for further processing available
electronic digital clock timer
operating hours counter
timer function, turns on after adjusted time (max 99h 59 min) (on request as well off)
interfaces as per customer specification

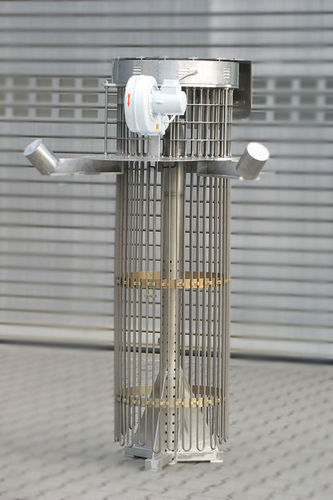

This Crucible Oven is for baking out ramming mixtures to reduce the holding time after revision.
Construction
heat flange and temperature control are one complete pre-heat unit. Delivered to “plug and play” wired and inclusive of all leads.
temperature control with:
electronic temperature control
electronic temperature protection
solid state relay load circuit
circuit element for customer slewing crane
heat flange with
24x 1.4828 Tubular Heaters
cold part inclusive radiation plates is reducing the temperature at the connection are
mineral insulated thermocouples for temperature control and monitoring
low pressure blower with manual butterfly valve reduces drying process
crane hook reachable after declining plug connector
