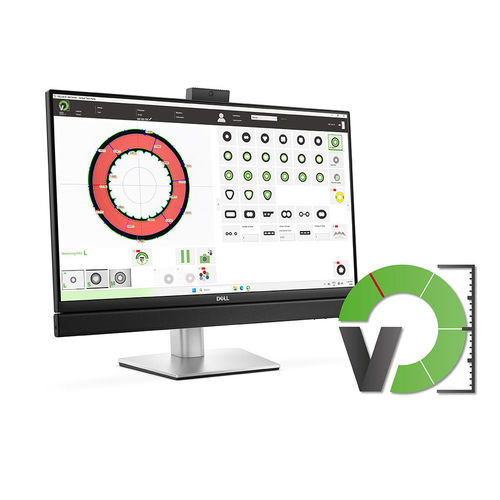

Dimensional measurement result viewing, analysis and reporting software VELOX

Product overview
The VELOX measuring software is the operating system for VCP measuring devices. State-of-the-art image processing algorithms enable highly precise and standard-compliant measurements of cable insulations and extrusion tools.

Important Standards

• IEC 60811 (-201, -202, -203)
• IEC 50396
• LV 112 (A Factor)
• ICEA S-94-649

Software details

• NEW: Measurement results are displayed directly in the measurement image and on the report
• Standard-compliant, fully automated measurement of cables, isolated conductors and tubes
• Custom-made special cables can be easily integrated
• Intuitive operation, excellent traceability and repeatability
• Operation possible without training – highly complex in the background – but easy, safe and quick to use
• All measurements are performed with image processing algorithms of the latest generation
• Modularly expandable (database interfaces, special geometries/shapes …)
• Clear, individually configurable and comprehensive result display
• Many reporting options, individually customizable in content and appearance (e.g. Excel, CSV, txt, xml ...)
• Manual measurement functions for measurements beyond cable measurement (Point-to-Point, angles, circles ...)
• Wide variety of special functions (e.g. indentations, protrusions, riffles ...)

VELOX - HIGHLIGHTS

• State-of-the-art image processing algorithms
• Smart, self-explanatory operation
• Newest as well as special standards from the cable industry integrated
• Ultra-modern design

Technical details (table)
Cable measurement device: VCPX5; AlphaOne; VCPLab
Operating system: Windows 11 (x64)
RAM space: 8 GB
Hard disk space: 5 GB (Software); 250 GB (recommended free disk space)

Characteristics / technical specifications

• Article number: 403.0001.30
• Product name / model: VELOX
• Compatible measuring devices / packages: VCPX5, AlphaOne, VCPLab
• Operating system: Windows 11 (x64)
• Minimum RAM: 8 GB
• Disk space required: 5 GB for software; 250 GB recommended free disk space
• Measurement features: fully automated, standard-compliant cable/isolated conductor/tube measurement; manual measurement functions (Point-to-Point, angles, circles)
• Reporting formats: Excel, CSV, txt, xml and customizable report content/appearance
• Expandability: modular (database interfaces, special geometries/shapes)
• Distribution: free download available (no registration indicated)
