Dimensional measurement device AlphaOne

Product overview

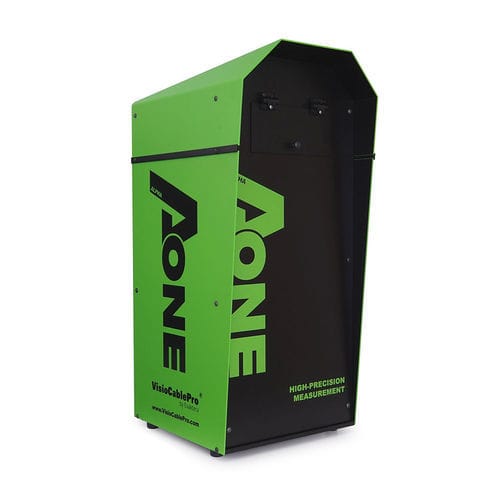

AlphaOne is a compact, high-precision cross-section measuring device for cables and hoses, engineered to integrate into production-line environments and strengthen quality assurance workflows.

Area of Application

• High-precision cross-section measurement of cables and hoses
• Designed for use directly at production lines (conductor line, jacket line, etc.)

Device details

• Field of view size configured to the specific production line
• Fast, easy measurements using VELOX measuring software (included)
• Compatible with all VCP family database software
• Connectable to various external CAQ/quality systems
• Robust design with simple, operator-friendly interface
• Intelligent automatic lighting controlled by software and fixed focusing — fully automatic operation with no user influence
• Shock- and vibration-resistant thanks to optimized sensor arrangement and balanced weight distribution
• Software supports multiple operator levels (production, laboratory, administrator, service)
• Standardized individual components ensure supply security and short delivery times
• Easy integration with external devices; minimal training required

Optional
AlphaOne optionally supplied with All‑In‑One Windows PC

Example configurations

• 401.040.01 - VCPALPHAONE-2MM (max. sample diameter = 2 mm)
• 401.040.02 - VCPALPHAONE-5MM (max. sample diameter = 5 mm)
• 401.040.03 - VCPALPHAONE-9MM (max. sample diameter = 9 mm)
• 401.040.04 - VCPALPHAONE-12MM (max. sample diameter = 12 mm)
• 401.040.08 - VCPALPHAONE-95MM (max. sample diameter = 95 mm)

Technical details
Dimensions (W x L x H): 390 x 470 x 890 mm
15.35 x 18.50 x 35.03 in
Weight: 28 kg
61.72 lbs
Supply voltage: 100–240 V, 50–60 Hz
Input power: max. 100 W
Resolution: corresponds to 0.1% of the image field
Lighting: intelligent, automatic lighting
Camera: customized single high-resolution camera
Measuring range: up to max. 200 mm (7.87") outer diameter

Characteristics / technical specifications

• Model name: AlphaOne
• Function: cross-section measurement of cable and hose samples (production-line compatible)
• Maximum measurable outer diameter: up to 200 mm depending on configuration
• Included software: VELOX measuring software
• Compatibility: VCP family databases; connectable to external CAQ systems
• Lighting and focus: software-controlled automatic lighting, fixed focus, fully automatic operation
• Camera: customized single high-resolution camera
• Resolution: approx. 0.1% of the image field
• Power: 100–240 V, 50–60 Hz; max. 100 W
• Dimensions (W x L x H): 390 x 470 x 890 mm
• Weight: 28 kg
• Design: robust, vibration-resistant with optimized sensor layout
• Operation: intuitive UI, multi-level operator settings
• Service & supply: standardized components for fast delivery; easy connection to external devices; low training effort
