Cable measurement system VCPX5

diametergeometrydimensional

Overview

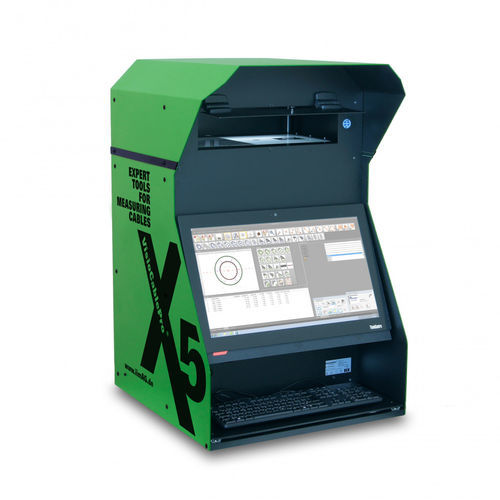

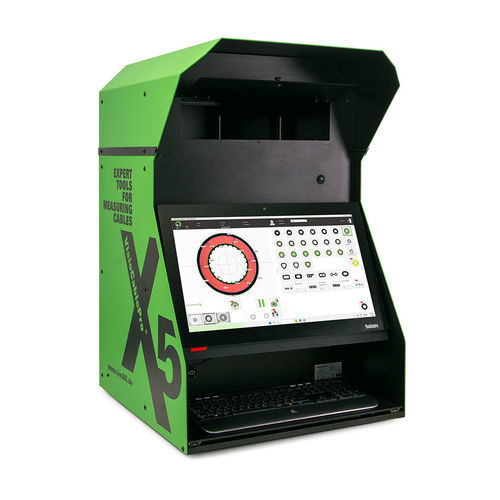

The cable measuring device VCPX5 is designed for geometrical measurements of core insulations and cable sheaths. It measures cable samples with an outer diameter up to 200 mm (7.87 in). Article number: 401.0020.07

Short description
The VCPX5 enables fast, highly accurate geometrical measurements in cable production. With robust construction and simple operation it accommodates very small to large samples depending on the chosen optical configuration. An integrated USB port allows convenient connection to external devices.

Device details

• Object size / measuring range up to 200 mm (7.87 in) (larger customisations possible)
• Quick and very easy measurement process
• Minimal training required (operator briefing about 15 minutes without customer-specific database)
• Compatible software: VELOX (measuring software), ProCable3 (CAQ system)
• Interfaces to various external CAQ systems possible (CIQ-AESA, ADVARIS, QDA-ASI-DATAMYTE, QUASAR, etc.)
• No operator influence on preset optical focus; intelligent automatic lighting
• Shock and vibration resistant thanks to optimized sensor arrangement and balanced weight distribution
• Measuring software supports multiple operator levels (production, laboratory, administrator, service)
• Standardized components ensure supply security and short delivery times
• Easy connection to external devices

Technical details
Dimensions (W x D x H): 600 x 560 x 910 mm
23.6 x 22 x 35.8 in
Weight: 54 kg
119 lbs
Supply voltage: 100 - 240 V / 50 - 60 Hz
Input power: max. 100 W
Resolution: corresponds to 0.1% of the image field
Lighting: intelligent, automatic lighting
Camera*: configurable 1–3 cameras, high resolution
Measuring range: up to max. 200 mm (7.87 in) outer diameter
Standards: IEC 60811-201; -202; -203; LV112 (A Factor); ICEA S-94-649

* The most suitable configuration can only be determined with your minimum and maximum sample outer diameter
