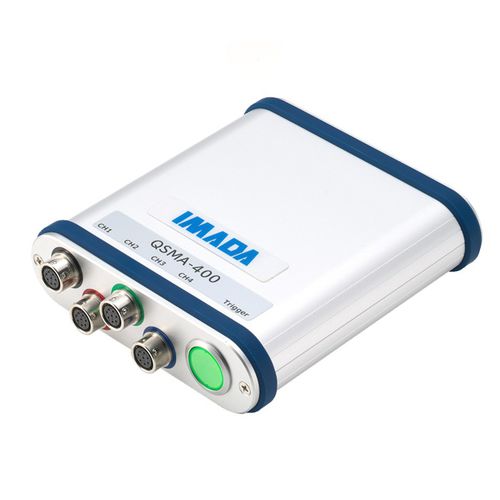

Signal amplifier QSMA-400

measuringfor sensorsfor strain gauge sensors

Quad Sensor Measuring Amplifier QSMA-400 A measurement amplifier capable of inputting up to 4 signals such as load cells, strain gauges, voltage sensors, etc. It’s also possible to input the linear scale (angle meter) and contact signals. Using the dedicated downloadable software, all measurement data will be real-time display. It’s possible to record data continuously, draw graphs automatically and allow us to analyze the correlations between measured values. Feature ・Up to 4 channels can be input from force, torque, strain, and voltage. Additionally, displacement (angle) and contact signals can also be input. ・High-speed sampling at 2000Hz allows for tracking sudden force changes and accurately capturing peak values and small force variations. ・Using the dedicated downloadable software, measurement data can be displayed in real time. Continuous data recording and time graph plotting are also possible. ・The dedicated software is available for download from user support website; IMADA Connected (user registration and QSMA-400 product registration required). ・The eZ-Connect can be attached and used without accuracy adjustment.
