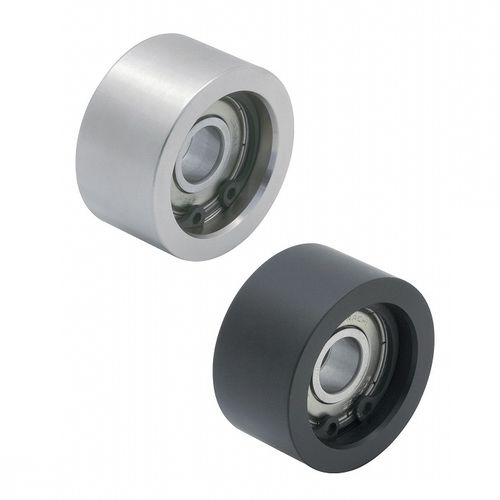

Bearing wheel type roller GRL-F
guideconveyingtensioner

Bearing wheel type roller - GRL-F - Imao Corporation - guide / conveying / tensioner
Bearing wheel type roller - GRL-F - Imao Corporation - guide / conveying / tensioner
Add to favorites
Compare this product
Go to the Imao Corporation website for more information

Characteristics

Type
bearing, guide, conveying, tensioner, drive
Material
steel, polyacétal
Applications
for sliding doors
Other characteristics
with ball bearing, for heavy loads
Outer diameter

Min.: 22 mm
(0.866 in)

Max.: 46 mm
(1.811 in)

Inside diameter

Min.: 6 mm
(0.24 in)

Max.: 15 mm
(0.59 in)

Width

Min.: 12 mm
(0.47 in)

Max.: 28 mm
(1.1 in)

Load capacity

Min.: 840 N

Max.: 7,650 N

Description

Guide Rollers
Our ready-to-use guide rollers, which are available in a wide variety of shapes, sizes, and materials, will save you time and
effort in product design.


Flat Guide Rollers
- Features -
  • Ready-to-use guide rollers with a single bearing.
  • Available in steel or plastic.
  • Handle heavier loads.
  • Flat-shaped roller.
- Specifications -
  • Roller Dia (mm): 22 - 46
  • Allowable Load (N): 840 - 3700
