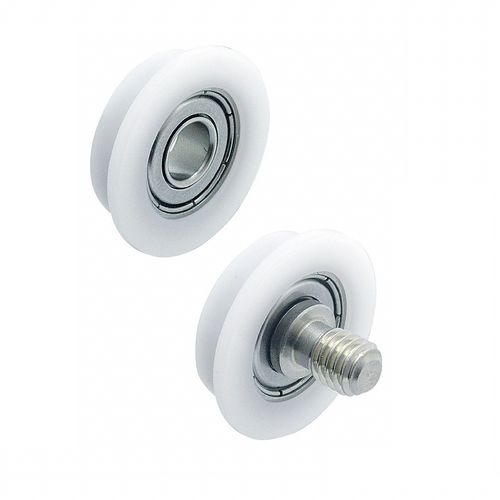

Guide roller GRL-P-L-SUS
bearingdriveconveying

guide roller
guide roller
Add to favorites
Compare this product


Characteristics

Type
bearing, guide, conveying, drive
Material
stainless steel, plastic, polyacétal
Applications
for sliding doors
Other characteristics
low-noise, flanged
Outer diameter

22 mm
(0.866 in)

Inside diameter

6 mm
(0.24 in)

Width

Min.: 6 mm
(0.24 in)

Load capacity

98 N

Description

SINGLE-FLANGED PLASTIC GUIDE ROLLERS Without/With Stud type are available. -Feature- -The plastic body provides silent running. -Notes- -Roller pin for “Without Stud” should be prepared by the customer. -Do not use in applications where impact load or thrust load is applied. -“Allowable Load” mentioned below means allowable radial load based on the test of rotating the roller a million times at the speed of 300min -1. Consider the above load values as a reference since load capacity varies with use conditions or environments. -Technical Information- Allowable Load: 98N Heat-resistant Temperature: 105 degrees celcius -Materials- Body: polyacetal plastic, White Bearing: SUS440C stainless steel Stud: SUS303 stainless steel -Datasheet- https://www.imao.co.jp/files/on-cat/pdf/en/grl-p-l-sus-e.pdf
