Guide roller GRL-U
stainless steelplasticpolyacétal

guide roller
guide roller
Add to favorites
Compare this product


stainless steel, plastic, polyacétal
for sliding doors
Other characteristics
Outer diameter

Min.: 13 mm (0.512 in)

Max.: 35 mm (1.378 in)

Inside diameter

Min.: 4 mm (0.16 in)

Max.: 8 mm (0.31 in)


Min.: 5 mm (0.2 in)

Max.: 9 mm (0.35 in)

Load capacity

Min.: 49 N

Max.: 196 N

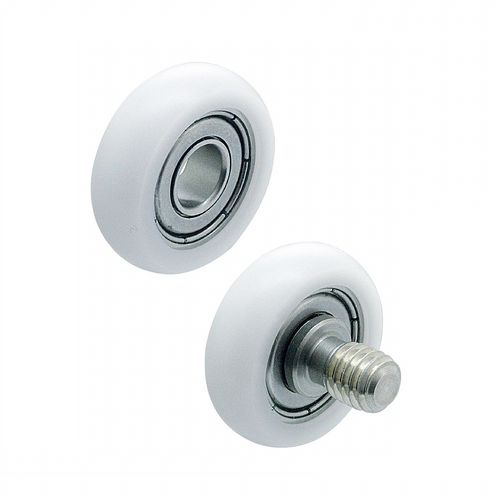

ROUND PLASTIC GUIDE ROLLERS Without/With Stud type are available. -Feature- The plastic body provides silent running. -Note- -Roller pin for the “Without Stud” type should be prepared by the customer. -Do not use in applications where impact load or thrust load is applied. -“Allowable Load” mentioned below means allowable radial load based on the test of rotating the roller a million times at the speed of 300min -1. Consider the above load values as a reference since load capacity varies with use conditions or environments. -Technical Information- Allowable Load(N): 49N, 68.6N, 98N, 196N Heat-resistant Temperature: 105 degrees celcius -Materials- Body: Polyacetal plastic, White Bearing: SUS440C stainless steel Stud: SUS303 stainless steel -Datasheet-
