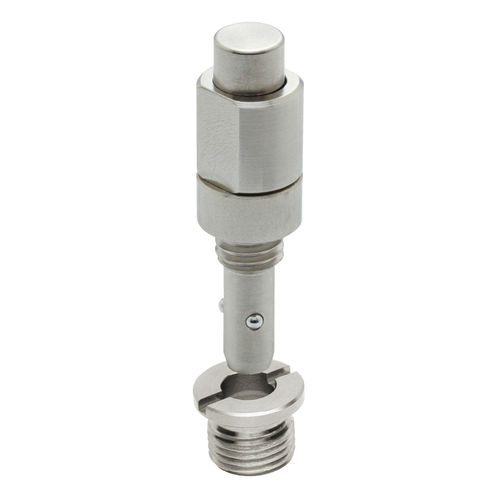

Quick-release pin with button QCBUS-SUS
for marine applications

quick-release pin with button
quick-release pin with button
Add to favorites
Compare this product

Go to the Imao Corporation website for more information

Characteristics

Options
with button, for marine applications

Description

BUTTON-LOCKING PINS WITH STRAIGHT BODY made of STAINLESS STEEL One-Touch Fasteners are quick release fasteners for frequent changeover of machinery or fixture. Quick and easy tool-less clamping reduces setup time in changeover. IMAO's quick release fasteners are available in various clamping styles, quarter turn fasteners, ball locking fasteners and pin holding fasteners. - Feature - Secure locking upon releasing button Ball lock clamping - Technical Information - Clamping force: 30 / 50N Holding Force: 90 / 150N Shear strength: 3000 / 9000N Tensile strength: 500 / 1500N Heatresistant Temperature: 180C degrees - Materials - Button: SUS420J2 stainless steel (electroless nickel plated, quenched and tempered) Body: SUS303 stainless steel Ball: SUS44C (stainless steel, quenched and tempered) Spring: SUS304WPB stainless steel
