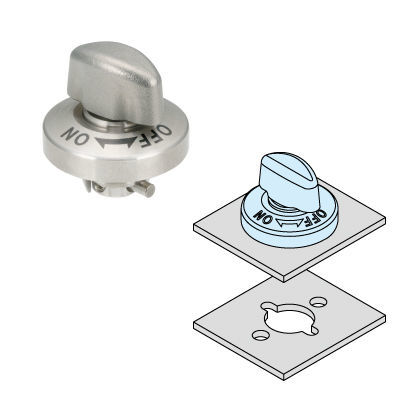

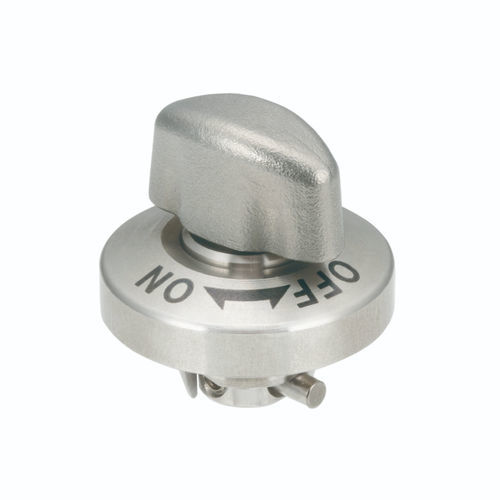

Stainless steel quarter-turn fastener QCTHT0425-SUS

for panelsfor electrical cabinetsfor enclosures

Product

• Quarter-turn panel clamps from the QCTHT series designed to secure removable panels and access doors.
• Example part: QCTHT0425-SUS (SUS stainless steel variant).

Applications

• Enclosures, control cabinets and machinery access panels.
• Industrial and equipment panels requiring quick access and secure retention.

Multimedia

• Product image available (qctht.jpg)
• Product video available (qctht.mp4)
• Latest datasheet available (qctht-e.pdf)

PDF & Technical Information

• Latest Datasheet listed under PDF Catalog
• One-Touch Fasteners Selection Guide listed under Technical Information

CAD Data
Part Number | Available CAD formats
QCTHT0425-SUS | DXF, DWG, SOLIDWORKS (zip), IGES (zip), Parasolid (zip), STEP (zip)

Technical specifications

• Series: QCTHT series
• Example part number: QCTHT0425-SUS
• CAD formats available: DXF, DWG, SOLIDWORKS (zip), IGES (zip), Parasolid (zip), STEP (zip)
• Datasheet: qctht-e.pdf (Latest Datasheet)
• Related technical guide: One-Touch Fasteners Selection Guide (technical information)
• Product video file: qctht.mp4
• Compliance indicator present: RoHS
• Detailed dimensions and tolerances available in CAD files and datasheet
