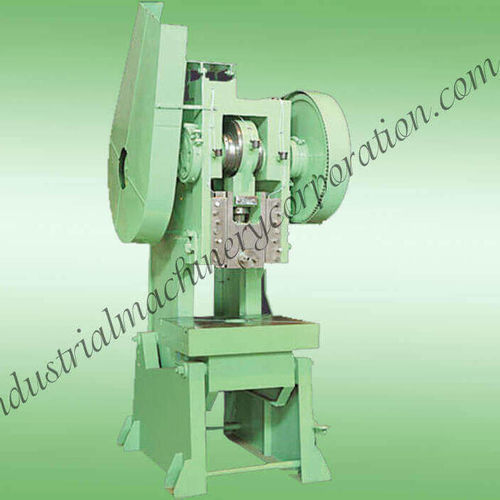

The C type power press is a mechanical stamping/pressing machine designed for metal forming and blanking operations across light to heavy production ranges. Available in capacities from 5 Ton to 250 Ton, with bed sizes from 275×375 mm to 850×1200 mm. Machines are supplied in C and H frame variants and can be configured to customer requirements for feed systems, lubrication and safety equipment.

Materials and Build
Construction uses rolled steel plate fabrication for the main frame. The crank shaft is manufactured from alloy steel and fitted with gun metal bushes to provide long service life and smooth operation. Ram and bed are precisely aligned to ensure consistent pressing accuracy. Critical components are inspected during manufacture to maintain dimensional tolerances.

Differences between C and H Type
The C type power press covers capacities from 5 Ton to 250 Ton and is typically used where open access to the die area is required. The H type is available from 10 Ton to 250 Ton and provides increased rigidity for heavy-duty stamping. Other mechanical features are comparable between variants.

Features & Options

• Automatic and manual lubrication systems
• Knock-out electronics and hand safety equipment options
• Single and double geared versions; un-geared (direct) version also available
• Pneumatic feeders and material handling interfaces
• Straight and die-collars available

Available Options (selectable)

• Maximum job thickness (customer input)
• Required maximum force in Tons (customer input)
• Model number of interest (customer input)
• Estimated budget / expected price (customer input)
• Purchase timing: Immediately / Within a week / Within 15 days / Within a month / Other / Unsure

Specifications of Power Press Machine 'C' Type (table)

• Model 5 Ton — Bed Size: 275 × 375 mm; Bed to Ram Bottom: 225 mm; Stroke Length: 50 mm; Gear Dia: 350 mm; Crank Shaft Dia: 65 mm; Fly Wheel Dia: 475 mm; Hole in Ram Clamping Die: 22 mm; Strokes/min: 60; Power Required: 1 HP; Motor: 1440 RPM
• Model 10 Ton — Bed Size: 300 × 450 mm; Bed to Ram Bottom: 250 mm; Stroke Length: 50 mm; Gear Dia: 450 mm; Crank Shaft Dia: 70 mm; Fly Wheel Dia: 525 mm; Hole in Ram Clamping Die: 25 mm; Strokes/min: 55; Power Required: 2 HP; Motor: 1440 RPM
• Model 20 Ton — Bed Size: 375 × 525 mm; Bed to Ram Bottom: 250 mm; Stroke Length: 60 mm; Gear Dia: 525 mm; Crank Shaft Dia: 80 mm; Fly Wheel Dia: 650 mm; Hole in Ram Clamping Die: 28 mm; Strokes/min: 55; Power Required: 2 HP; Motor: 1440 RPM
• Model 30 Ton — Bed Size: 400 × 600 mm; Bed to Ram Bottom: 300 mm; Stroke Length: 80 mm; Gear Dia: 600 mm; Crank Shaft Dia: 90 mm; Fly Wheel Dia: 700 mm; Hole in Ram Clamping Die: 32 mm; Strokes/min: 50; Power Required: 3 HP; Motor: 1440 RPM
• Model 50 Ton — Bed Size: 500 × 750 mm; Bed to Ram Bottom: 375 mm; Stroke Length: 95 mm; Gear Dia: 650 mm; Crank Shaft Dia: 110 mm; Fly Wheel Dia: 800 mm; Hole in Ram Clamping Die: 40 mm; Strokes/min: 50; Power Required: 5 HP; Motor: 1440 RPM
• Model 75 Ton — Bed Size: 550 × 800 mm; Bed to Ram Bottom: 400 mm; Stroke Length: 110 mm; Gear Dia: 750 mm; Crank Shaft Dia: 125 mm; Fly Wheel Dia: 900 mm; Hole in Ram Clamping Die: 45 mm; Strokes/min: 45; Power Required: 7.5 HP; Motor: 1440 RPM
• Model 100 Ton — Bed Size: 600 × 900 mm; Bed to Ram Bottom: 450 mm; Stroke Length: 125 mm; Gear Dia: 850 mm; Crank Shaft Dia: 150 mm; Fly Wheel Dia: 1000 mm; Hole in Ram Clamping Die: 50 mm; Strokes/min: 40; Power Required: 10 HP; Motor: 1440 RPM
• Model 150 Ton — Bed Size: 700 × 1000 mm; Bed to Ram Bottom: 465 mm; Stroke Length: 150 mm; Gear Dia: 1000 mm; Crank Shaft Dia: 175 mm; Fly Wheel Dia: 1100 mm; Hole in Ram Clamping Die: 55 mm; Strokes/min: 40; Power Required: 15 HP; Motor: 1440 RPM
• Model 200 Ton — Bed Size: 800 × 1150 mm; Bed to Ram Bottom: 500 mm; Stroke Length: 160 mm; Gear Dia: 1050 mm; Crank Shaft Dia: 200 mm; Fly Wheel Dia: 1200 mm; Hole in Ram Clamping Die: 60 mm; Strokes/min: 35; Power Required: 20 HP; Motor: 1440 RPM
• Model 250 Ton — Bed Size: 850 × 1200 mm; Bed to Ram Bottom: 550 mm; Stroke Length: 175 mm; Gear Dia: 1200 mm; Crank Shaft Dia: 240 mm; Fly Wheel Dia: 1300 mm; Hole in Ram Clamping Die: 70 mm; Strokes/min: 30; Power Required: 25 HP; Motor: 1440 RPM

Technical specifications

• Product type: C Type Power Press Machine
• Models available: 5, 10, 20, 30, 50, 75, 100, 150, 200, 250 Ton
• Bed sizes: 275×375 mm to 850×1200 mm depending on model
• Stroke length range: 50 mm to 175 mm depending on model
• Gear diameters: 350 mm to 1200 mm (model dependent)
• Crank shaft diameters: 65 mm to 240 mm (model dependent)
• Fly wheel diameters: 475 mm to 1300 mm (model dependent)
• Hole in ram clamping die: 22 mm to 70 mm
• Strokes per minute: 30 to 60 depending on model
• Power required: 1 HP to 25 HP depending on model
• Motor speed: 1440 RPM for all listed models
• Construction: rolled steel plate frame; alloy steel crank shaft with gun metal bushes
• Customization: options for lubrication system, gearing configuration, pneumatic feeders and safety equipment
