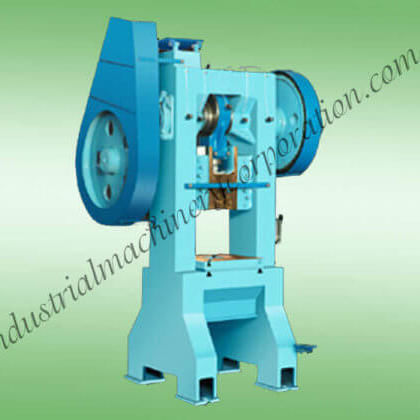

Mechanical press

formingstampingbending

Product Overview
The H Type power press is a mechanical stamping press designed for sheet forming, punching and bending operations in industrial production. Units are assembled from precision components, with dimensional checks at key stages of manufacturing to ensure consistent ram alignment and repeatable stroke performance. Available capacities range from 10 to 500 Ton to cover single-station and progressive tooling applications.

Available Options

• Maximum thickness of job
• Maximum force required (Ton)
• Model number required
• Expected price
• Purchase timeframe: Immediately / Within a week / Within 15 days / Within a month / Other / Unknown

Specifications Table
Model | 10 Ton | 20 Ton | 30 Ton | 50 Ton | 75 Ton | 100 Ton | 150 Ton | 200 Ton | 250 Ton | 300 Ton | 400 Ton | 500 Ton
Bed Size | 300 X 350 | 350 X 400 | 400 X 450 | 450 X 500 | 550 X 600 | 600 X 650 | 650 X 700 | 750 X 800 | 800 X 850 | 900 X 950 | 1000 X 1050 | 1100 X 1100
Bed To Ram Bottom | 250 | 250 | 300 | 375 | 400 | 450 | 465 | 500 | 550 | 600 | 650 | 700
Stroke Length | 55 | 60 | 80 | 95 | 110 | 125 | 150 | 160 | 175 | 200 | 200 | 200
Gear Dia | 450 | 525 | 600 | 650 | 750 | 850 | 1000 | 1050 | 1200 | 1200 | 1200 | 1250
Crank Shaft Dia | 70 | 80 | 90 | 110 | 125 | 150 | 175 | 200 | 225 | 250 | 300 | 300
Fly Wheel Dia | 525 | 650 | 700 | 800 | 900 | 1000 | 1100 | 1200 | 1300 | 1375 | 1500 | 1500
Hole in Ram Clamping Die | 25 | 28 | 32 | 40 | 45 | 50 | 55 | 60 | 70 | 80 | 100 | 110
No of Stroke per minute | 55 | 55 | 50 | 50 | 45 | 40 | 40 | 35 | 30 | 25 | 20 | 20
Power Required in HP | 2 | 2 | 3 | 5 | 7.5 | 10 | 15 | 20 | 25 | 25 | 30 | 35
Motor (RPM) | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440 | 1440

Features / Technical specifications

• Models available: 10 Ton, 20 Ton, 30 Ton, 50 Ton, 75 Ton, 100 Ton, 150 Ton, 200 Ton, 250 Ton, 300 Ton, 400 Ton, 500 Ton
• Bed size range: 300 x 350 to 1100 x 1100 mm (depending on model)
• Stroke length range: 55 to 200 mm (depending on model)
• Power required: 2 HP to 35 HP (depending on model)
• Motor speed: 1440 RPM (all models)
• Fly wheel diameter range: 525 to 1500 mm
• Crank shaft diameter range: 70 to 300 mm
• Strokes per minute: 20 to 55 (depending on model)
