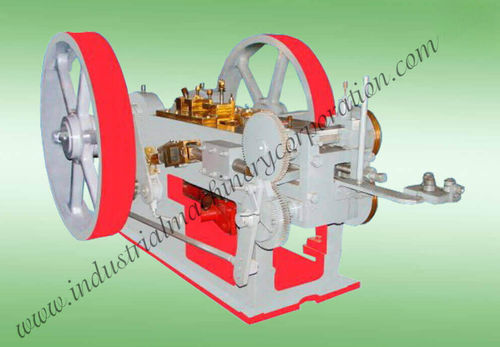

Cold heading machine IMC-CHM series
Add to favorites
Compare this product
Description
Product description
The IMC-CHM automatic cold heading machine is designed for high-volume fastener production. It performs cold heading operations with a mobile slide carrying two heading punches for initial forming and finishing. The machine accepts wire / bar feed and includes vertical straightening rollers to ensure consistent straight wire feeding for long-piece processing.
Advantages
The design integrates multiple safety devices on the cut-off and knock-out mechanisms to reduce downtime and risk. Punches and dies are adjustable and can be set manually for quick part changeovers. Critical components — rollers, roller pins and cams — are manufactured from high-grade heat-treated and ground steel to extend service life and maintain dimensional accuracy under continuous operation.
It produces
Specifications (table)
Model No. - Capacity (Length x Dia) - Production (Per Minute) - Power Required (H.P x RPM)
IMC-CHM-2 - 2" x 1/4" (50MM x 6MM) - 80-85 - 3 x 960
IMC-CHM-2.5 - 2.5" x 5/16" (65MM x 8MM) - 70-75 - 5 x 960
IMC-CHM-3 - 3" x 3/8" (75MM x 10MM) - 60-65 - 10 x 960
IMC-CHM-4 - 4" x 1/2" (100MM x 12MM) - 45-50 - 15 x 960
IMC-CHM-5 - 5" x 5/8" (125MM x 15MM) - 35-40 - 20 x 960
IMC-CHM-6 - 6" x 3/4" (150MM x 20MM) - 25-30 - 35 x 1440
Technical characteristics / specifications
The IMC-CHM automatic cold heading machine is designed for high-volume fastener production. It performs cold heading operations with a mobile slide carrying two heading punches for initial forming and finishing. The machine accepts wire / bar feed and includes vertical straightening rollers to ensure consistent straight wire feeding for long-piece processing.
Advantages
The design integrates multiple safety devices on the cut-off and knock-out mechanisms to reduce downtime and risk. Punches and dies are adjustable and can be set manually for quick part changeovers. Critical components — rollers, roller pins and cams — are manufactured from high-grade heat-treated and ground steel to extend service life and maintain dimensional accuracy under continuous operation.
It produces
- Bolts
- Screws
- Rivets
- Taper roller headings and similar cold-formed parts
Specifications (table)
Model No. - Capacity (Length x Dia) - Production (Per Minute) - Power Required (H.P x RPM)
IMC-CHM-2 - 2" x 1/4" (50MM x 6MM) - 80-85 - 3 x 960
IMC-CHM-2.5 - 2.5" x 5/16" (65MM x 8MM) - 70-75 - 5 x 960
IMC-CHM-3 - 3" x 3/8" (75MM x 10MM) - 60-65 - 10 x 960
IMC-CHM-4 - 4" x 1/2" (100MM x 12MM) - 45-50 - 15 x 960
IMC-CHM-5 - 5" x 5/8" (125MM x 15MM) - 35-40 - 20 x 960
IMC-CHM-6 - 6" x 3/4" (150MM x 20MM) - 25-30 - 35 x 1440
Technical characteristics / specifications
- Brand: Industrial Machinery Corporation (IMC)
- Model series: IMC-CHM series (IMC-CHM-2, IMC-CHM-2.5, IMC-CHM-3, IMC-CHM-4, IMC-CHM-5, IMC-CHM-6)
- Capacity ranges: up to 6" length x 3/4" diameter (150MM x 20MM) depending on model
- Production rate: 25–30 to 80–85 pieces per minute depending on model
- Power requirement: 3 x 960 to 35 x 1440 (H.P x RPM) depending on model
- Key features: mobile slide with two heading punches; adjustable punches and dies; vertical wire straightening rollers; multiple safety devices for cut-off and knock-out
- Construction: rollers, roller pins and cams made of high-grade heat-treated and ground steel
