Feedback system for hand valves MT

Overview

• Multi-turn valve sensor for industrial applications providing fast, non-intrusive mounting and continuous remote monitoring of manual valve position.
• Adjustable mounting system fits multi-turn and rising-stem valves, enabling installation in under two minutes without process interruption.
• Secure LoRaWAN connectivity for near real-time status updates in hazardous or hard-to-reach environments.
• Designed for industrial reliability with IP65 protection, ATEX/IECEx Zone 1 and cFMus Class I Division 1 certification, and battery life up to 5 years.

Product description

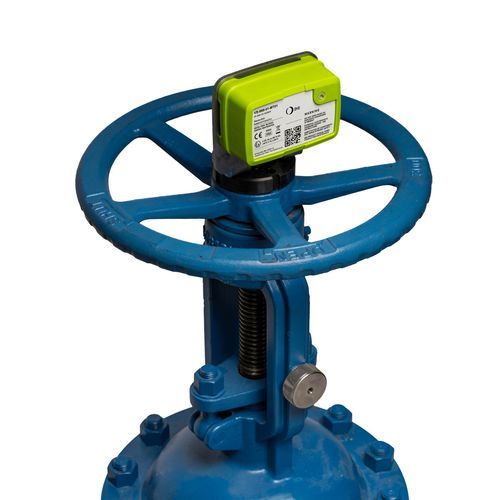

• The NEON Multi-turn (MT) Valve Sensor (VS MT) is a LoRaWAN transmitter with integrated magnetic encoder that provides precise positional feedback and reliable open/closed state detection for manual multi-turn valves.
• Non-intrusive installation using the supplied adjustable mounting kit (specialised kit for rising-stem MT valves) removes the need for process shutdown.
• Certified for hazardous atmospheres: ATEX / IECEx Zone 1 (Ex II 2G Ex ia IIB T4 Gb) and cFMus Class I Division 1 (Groups C + D); operational temperature -40°C to +80°C.
• Operates on privately hosted LoRaWAN networks (EU868; US915; AS923 on request) and integrates with DCS/SCADA for near real-time reporting.
• Battery powered (3.6 Ah nominal) with expected life up to 5 years depending on environment and usage profile.
• Detects valve state as fully closed or fully open with angle-based detection: state change triggered after 2 mm vertical movement; typical error offset 1 mm.

Key features

• LoRaWAN transmitter with integrated magnetic sensor
• Operating temperature range -40°C to +80°C
• IECEx / ATEX Zone 1 certified (Ex II 2G Ex ia IIB T4 Gb)
• Up to 5-year battery life (environment dependent)
• Supplied mounting kit for multi-turn / rising-stem valves
• Compatible with nearly all manual valve types
• Determines valve state: fully closed / fully open
• Operates on privately hosted LoRaWAN I‑IoT networks
• Quick provisioning and non-intrusive installation

Specifications
Protocol: LoRaWAN (private LoRaWAN)
LoRaWAN Region: EU868 / US915 / AS923 (on request)
LoRaWAN Frequency Bands: 868 MHz; 915 MHz; 923 MHz
Battery Rated Capacity (Ah): 3.6
Battery Life: Up to 5 years
Mounting: Specialised mounting kit for MT rising-stem valves (supplied)
Operating Temperature Range (Transmitter): -40°C to +80°C (-40°F to 176°F)
Ingress Protection: IP65
Angle Detection: State change after 2 mm vertical movement
Error Offset: 1 mm
Message Frequency: On state/change and every 24 hours
Message Content: State change (open/close) and battery condition
Certifications: ATEX / IECEx Ex II 2G Ex ia IIB T4 Gb; certificates 18ATEX0106 / DEK 18.0063; cFMus Class I Division 1 (Groups C + D) T4; cFMus certificates FM20US0015X / FM20CA0007X


Technical specifications

• Protocol: LoRaWAN (private LoRaWAN)
• Regions supported: EU868 / US915 / AS923 (on request)
• Frequency bands: 868 MHz, 915 MHz, 923 MHz
• Battery rated capacity: 3.6 Ah
• Battery life: Up to 5 years (depending on environment)
• Mounting: Specialised mounting kit for MT rising-stem valves (supplied)
• Operating temperature (transmitter): -40°C to +80°C
• Ingress protection: IP65
• Angle detection: State change after 2 mm vertical movement
• Error offset: 1 mm
• Message frequency: On state/change and every 24 hours
• Message content: State change (open/close) and battery condition
• Certifications: ATEX / IECEx Ex II 2G Ex ia IIB T4 Gb; certificates 18ATEX0106 / DEK 18.0063; cFMus Class I Division 1 (Groups C + D) T4; cFMus certificates FM20US0015X / FM20CA0007X
