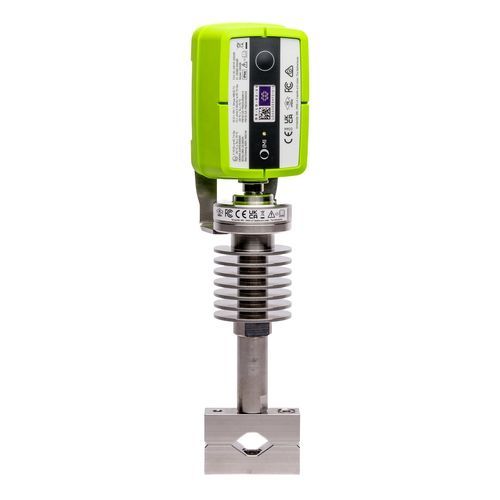

Condition with diagnostics monitoring unit NEON Sonic

temperatureacousticfor steam trap

Overview
NEON Sonic is a LoRaWAN-enabled acoustic and temperature sensor for continuous monitoring of steam traps and critical steam-system assets. It combines an acoustic probe and temperature sensing in a single industrial-grade device to deliver near real-time condition monitoring, automated alerts, edge diagnostics and long-life battery operation for hazardous and harsh environments.

Primary benefits

• Replace manual inspection with scheduled and event-driven measurements to enable proactive maintenance and reduced operational downtime.
• Edge diagnostics identify trap faults (blocked or leaking) and simplify integration of diagnostic outputs into existing asset management systems.
• Available ATEX / IECEx Zone 0 and HazLoc Class I Division 1 certification options for safe use in explosive atmospheres.

Key features

• LoRaWAN transmitter combined with acoustic probe and temperature sensor.
• Measures sound pressure level (SPL), process temperature and ambient temperature.
• Process temperature capability up to 450°C with extension accessory.
• Certification options: ATEX / IECEx Zone 0, HazLoc Class I Division 1 (where required).
• Up to 14 years battery life (depending on operating profile and environment; measured at 25°C).
• Global LoRaWAN compatibility with support for multiple regions and frequency bands.
• Edge Intelligence spectral analysis for steam trap fault detection (blocked or leaking conditions).
• Firmware update over-the-air (FOTA) compliant with LoRa Alliance specifications.
• Industrial design: IP65 ingress protection, wide operating temperature range, robust mounting including pipe-clamp option.

Use cases

• Continuous steam trap monitoring to reduce energy losses and unplanned shutdowns.
• Integration with DCS/SCADA and existing back-end systems for operational visibility and analytics.
• Long-term, low-maintenance deployments across heavy industry sites using private or public LoRaWAN networks.

Additional product information
NEON Sonic supports configurable event-based messaging (timer, button press, steam-trap condition), adjustable measurement intervals with 1-minute resolution and configurable message-send conditions (always or on condition). Time synchronisation across multiple sensors is supported (accuracy ~12 ms). Device configurations include integrated mounting assemblies, front-mounted and separate sensor/housing variants to suit installation requirements.

Technical specifications

• Protocol: LoRaWAN (private LoRaWAN).
• Regions supported: EU868, US915, AU915, AS923-1, AS923-2, AS923-3, AS923-4, IN865.
• Frequency bands: 869 MHz; 915 MHz; 923 MHz.
• Maximum RF output power: +14 dBm.
• Battery rated capacity: 17 Ah.
• Battery life: up to 14 years at 25°C (depending on environment).
• Operating temperature (transmitter): -40°C to 70°C (-40°F to 176°F).
• Sensor temperature range: Sensor: -40°C to 260°C (-40°F to 500°F); Sensor + extension: -40°C to 450°C (-40°F to 842°F); Ambient: -40°C to 70°C (-40°F to 158°F).
• NEON Sonic STM acoustic measuring range: 15 kHz to 85 kHz (3 dB points).
• Acoustic overload point: 130 dBSPL.
• Ingress protection: IP65.
• Certifications: ATEX / IECEx Rating: Ex II 1G Ex ia IIC T4 Ga; ATEX / IECEx Certificates: 22ATEX0004X / DEK22.0004X; cFMus rating pending (IS Class I Division 1 Group ABCD T4; Class I Zone 0 AEX/Ex ia IIC T4 Ga); cFMus certificates pending: FM22US0061X / FM22CA0043X.
• Firmware features: independent event-based triggers (timer / button / steam trap condition); adjustable measurement interval (1-minute resolution, relative/absolute); configurable send condition (always / on condition); time synchronisation (multiple sensors, ~12 ms); edge spectral analysis for steam trap fault indication; FOTA compliant with LoRa Alliance TS006-1.0.0 / TS005-2.0.0 / TS004-2.0.0.
• Design & deployment: built for heavy-industry use, tested across sensor+extension operating range, spare parts and refurbishment kit availability, pipe-clamp mounting option.
