Hydrogen production electrolysis unit

for hydrogengreen hydrogenPEM

Overview

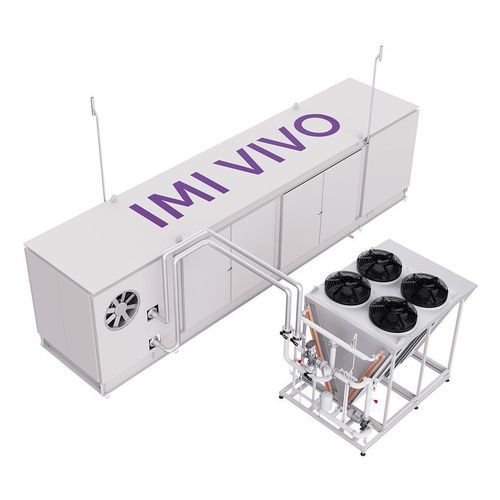

The IMI VIVO 1MW PEM Electrolyser is a compact hydrogen production system designed for integration with renewable energy sources. Housed in a containerised 8 x 40 ft skid, it provides up to 200 Nm³/h of hydrogen at up to 99.999% purity (with purifier) and operates across a dynamic range of 10–100%. Cold start ramp-up is under 5 minutes. The system supports flexible grid and industrial applications and is designed for modular scalability and low-noise operation.

Real-Time Monitoring Dashboard
The IMI VIVO dashboard delivers real-time data on hydrogen production, efficiency, pressure and power consumption. Accessible remotely via Modbus TCP/IP, it provides performance tracking, alerts and diagnostics to simplify operation and maintenance.

Hydrogen Storage Integration

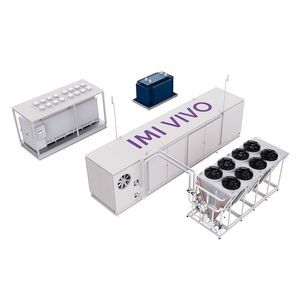

The electrolyser integrates with modular hydrogen storage and booster packages for on-site use or distribution. Options include containerised tanks and booster units supporting pressures up to 40 bar(g) and beyond, designed for safe and seamless operation with the electrolyser.

Key features

• Output: up to 200 Nm³/h H₂
• Purity: up to 99.999% with purifier
• Ramp-up time: <5 minutes
• Operating range: 10–100%
• Maximum power consumption: 58 kWh/kg
• Noise: <60 dB(A) at 10 m
• Pressure: H₂ 40 bar(g), O₂ <2 bar(g)
• Container size: 8 x 40 ft skid
• Remote monitoring via Modbus TCP/IP
• Customisable and fully scalable

Caractéristiques / spécifications techniques

• Output (H₂): up to 200 Nm³/h
• H₂ Purity: Over 99.999% (with purifier)
• O₂ Purity: 99%
• Maximum Power Consumption (kWh/kg): 58
• Cold Ramp Up Time: <5 min
• Operating / Dynamic Range: 10 to 100 %
• H₂ Pressure: 40 bar(g)
• O₂ Pressure: <2 bar(g)
• Water Supply: 400 l/h
• Noise: <60 dB(A) at 10 m
• Interfaces: Modbus and TCP/IP
• Electrical Loads: 400 / 50 Hz / 1.11 MW
• Communication: 24/7 data acquisition and remote monitoring
• Container / Size (ft): 8 x 40 x 8 (alternative: 20 x 8 x 8)
• Design: Containerised 8 x 40 ft skid, modular scalability, low-noise operation
