Hydrogen production electrolysis unit 4MW

for hydrogengreen hydrogenmembrane

Overview

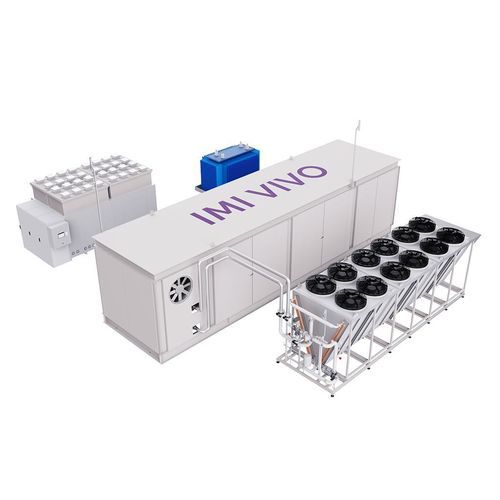

The IMI VIVO 4MW PEM electrolyser is a compact, modular containerised system for large-scale green hydrogen production. It delivers up to 800 Nm³/h of hydrogen (with purifier) and operates across a dynamic range of 10–100% with ramp-up in under 5 minutes. The solution integrates PEM stacks, cooling, purification and power systems in containerised/skid format and supports remote diagnostics and real-time performance monitoring.

Real-Time Monitoring Dashboard
The system includes a secure cloud-based dashboard for live monitoring of pressure, flow, temperature and energy consumption. Features include 24/7 data acquisition, real-time diagnostics, performance alerts and remote optimisation via Modbus TCP/IP.

Hydrogen Storage Integration
Compatible with modular containerised hydrogen storage systems for on-site or mobile buffering and distribution. Storage supports up to 40 bar(g) and can be expanded to meet operational demand.

Key benefits

• High-purity hydrogen production at scale with rapid ramp-up and full turndown capability
• Compact, containerised modules simplify site installation and reduce integration time
• Remote performance optimisation through live data, alerts and secure remote access
• Modular and scalable design suitable for energy, mobility and industrial projects

Applications

• Industrial hydrogen production
• Mobility and refuelling solutions
• Energy projects integrating renewables and storage

Technical specifications

• Output: up to 800 Nm³/h H₂
• H₂ purity: 99.999% with purifier; product specification indicates over 99.999%
• O₂ purity: 99%
• Ramp-up time (cold): <5 minutes
• Operating (dynamic) range: 10–100%
• Maximum power consumption: stated in main description as 57 kWh/kg; specification table lists 58 kWh/kg
• Max power use (spec / electrical load): MV / 50 Hz / 4.27 MW
• H₂ pressure: 40 bar(g)
• O₂ pressure: <2 bar(g)
• Water supply: 1600 l/h
• Skid / container footprint: 8 x 40 ft skid with an additional 12 x 45 ft container (also presented as 8 x 40 x 8 ft and alternate 11 x 40 x 11 ft dimensions in specs)
• Interfaces / Communication: Modbus and TCP/IP (Modbus TCP/IP supported for remote monitoring)
• Designed features: modular, scalable containerised PEM electrolyser system with integrated cooling, purification and power systems
