Hydrogen production electrolysis unit 3MW

for hydrogengreen hydrogenPEM

Overview

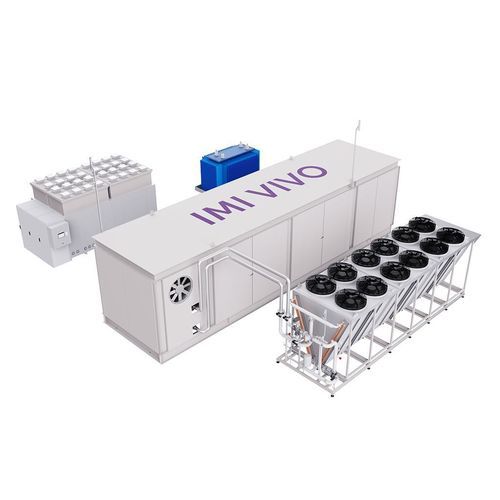

The IMI VIVO 3MW PEM electrolyser is a containerised green hydrogen generation system for industrial and energy applications. It delivers scalable, high-purity hydrogen with rapid cold start, full dynamic load flexibility and integrated remote monitoring. The compact containerised format (8 x 40 ft skid + 12 x 45 ft unit) simplifies site deployment and renewable energy integration. Modular storage options provide on-site buffering, peak shaving and distribution capabilities.

Key capabilities

• Output: up to 600 Nm³/h H₂
• H₂ purity: 99.999% (with purifier)
• Rapid cold ramp-up: <5 minutes
• Operating range: 10–100% with full dynamic load flexibility
• Containerised, modular design to minimise installation complexity
• Real-time remote monitoring for production, energy use and diagnostics
• Interfaces: Modbus and TCP/IP for plant integration
• Scalable architecture compatible with hydrogen storage systems

Real-Time Monitoring Dashboard
Operators access a dashboard for real-time production, energy consumption and performance diagnostics. The system supports remote access, data logging and alarm management to optimise availability and maintenance planning.

Hydrogen storage integration
Modular storage can be configured up to 40 bar(g) and integrated directly with the electrolyser to enable safe on-site storage, refuelling station supply and distribution workflows.

Applications

• Mobility and refuelling infrastructure
• Power-to-gas and grid balancing
• Industrial processes requiring high-purity hydrogen
• Renewable projects requiring on-site hydrogen generation and buffering

Technical specifications

• Output: up to 600 Nm³/h H₂
• H₂ purity: >99.999% (with purifier)
• Power consumption: 57 kWh/kg (typical); Maximum: 58 kWh/kg
• Cold ramp-up time: <5 minutes
• Operating range: 10–100%
• H₂ pressure: 40 bar(g)
• O₂ pressure: <2 bar(g)
• O₂ purity: 99%
• Container sizes: 8 x 40 x 8 ft and 11 x 40 x 11 ft
• Skid configuration: 8 x 40 ft skid + 12 x 45 ft unit
• Electrical load: MV / 50 Hz / 3.21 MW
• Interfaces: Modbus and TCP/IP
• Communication: 24/7 data acquisition and remote monitoring
• Water supply: 1200 l/h
• Designed for industrial and energy markets; scalable for larger hydrogen systems
