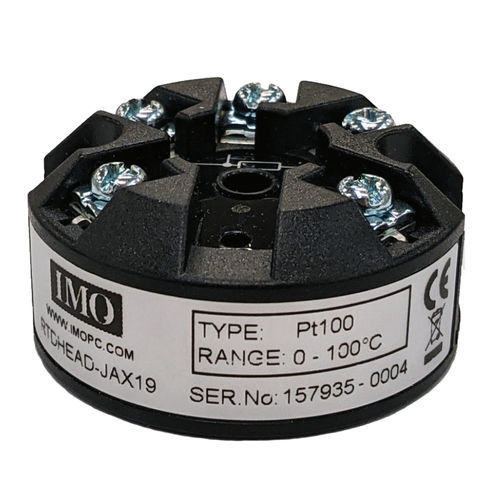

Pt100 temperature transmitter RTDHEAD-JAX19-FC

digitalprogrammable

In Head Temp.Transmitter PT100 Input, Input Range Factory configured 4-20mA O/P Loop Monitoring Pins The RTDHEAD-JAX19 is a low cost “smart” in head transmitter that accepts PT100 temperature sensors and converts sensor output over a configured range to a standard industrial (4 to 20) mA transmission signal. A simple push button operation allows the user to not only select the desire range and burnout direction but also perform user trim at both (4 & 20) mA points. The RTDHEAD-JAX19 in head transmitter incorporates the latest digital technology to ensure accurate drift free performance. If required the desired range can be specified at the time of order, removing the need for user configuration. If the range is not specified then the transmitter will be shipped with the default range of (0 to 100) °C set. Key Features • Suitable for use with PT100 sensors • Unique push button configuration without PC • Push button sensor matching • 4/20mA output • High stability • Programmable burnout
