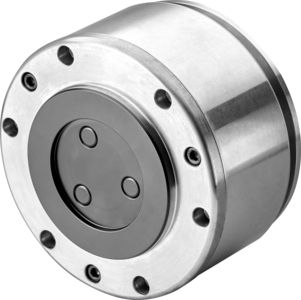

Planetary gear reducer IMS.1000 Drive LN coaxialhollow-shaft50 - 100 Nm
Add to favorites
Compare this product
Characteristics
- Type
- planetary
- Shaft orientation
- coaxial
- Shaft configuration
- hollow-shaft
- Torque
- 50 - 100 Nm
- Configuration
- compact
- Number of stages
- two-stage
- Applications
- drive, wheel, for AGV
- Rotational speed
3,000 rpm, 5,000 rpm
(18,849.5559 rad.min-1, 31,415.9265 rad.min-1)- Weight
10 kg
(22.05 lb)
Description
Our planetary gear from the Drive Series is customized for the special requirements of wheel drives. Due to its helical gearing it also meets increased demands on low noise performance.
Compact Overall Length
No space? No problem! The compact design of our Drive Series makes it possible.
Long Service Life
Persistent and reliable: planetary gears that keep their promises.
Maximum Power Density
Little space and great performance - with our Drive Series this is no contradiction.
Temperature
Also ideally suited for demanding temperature ranges from -30° to +60°C.
Low Noise (LN)
Due to the use of helical gearing in the first stage particularly low noise
Catalogs
IMS.1000 Drive LN
2 Pages
