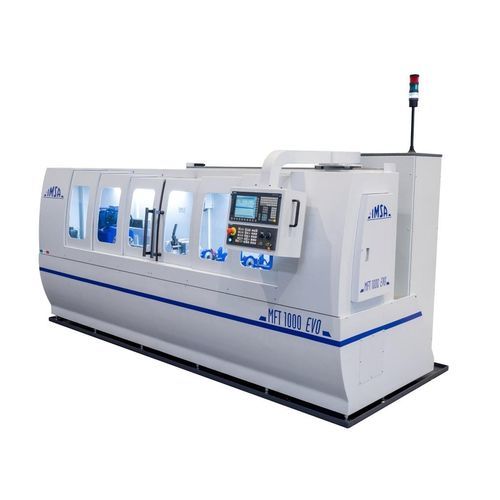

CNC deep hole drilling machine MFT 1000EVO

deep holefor heat exchangerssingle-spindle

The IMSA deep hole drilling machine MFT 1000EVO is dedicated to cylindrical workpieces that have to be drilled on their rotation axis. Drilling depth in single operation: 160x diameter until a maximum of 1000mm. Hole diameter range 4 – 25 mm. Some applications: transmission shafts, gear shafts, lubricators, valves, in general all round workpieces that have to be drilled on-center. Deep drilling method: gun drill tool. Drilling spindle: 9 kW, 6.000 rpm. The workpiece is in counter-rotation in respect to the gun drill, in order to obtain the maximal drill straightness and process speed. Specific IMSA functions to control the deep drilling process: – Electronic check of cutting parameters, – Double electronic check against gundrill-breaking, by reading the cutting effort. Temperature, pressure and oil cleanliness are fundamental parameters to ensure continuous trouble-free gun drilling operations. The IMSA MFT 1000EVO deep hole drilling machine is equipped with the best solutions that automatically manage these three parameters to the most suitable value: – high-pressure pump managed by inverter; – for oil clarification: a complete 3-level filtering system; – for oil cooling: a heat exchanger (chiller). The MFT 1000 EVO version manages oil pressure and flow though inverter; moreover this EVO version enables a very quick setup thanks to full-cnc movements. Options Workpiece automatic loader, Small diameter adjustment to drill Ø 3 – 20 mm, Large diameter adjustment to drill Ø 6 – 32 mm, Drilling diameter increase up to 32 mm, Automatic door opening, Steadyrest for workpiece support, Automatic 3-jaw chuck.
