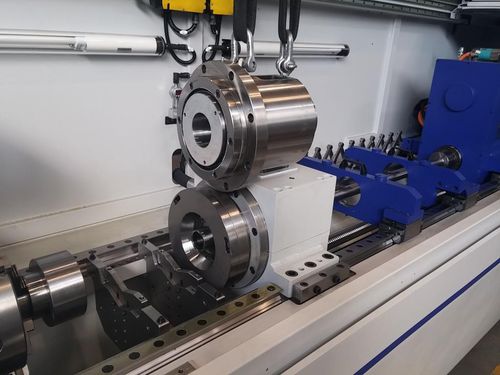

Cnc Deep Hole Drilling Machine for cylindrical parts, on-center holes
The deep hole drilling machines of the IMSA Series MFTB are dedicated to cylindrical workpieces that have to be drilled on their rotation axis.
Deep drilling method: in the intermediate diameter range between the Gun Drilling and the BTA Drilling, we propose a Double-Setup flexible solution we called IMSA “GDK” System. Our machines of the GDK Series work with 2 different deep drilling methods: BTA tool and Gun Drill tool. This enables you to better take advantage of both tool types.
The workpiece is in counter-rotation in respect to the gun drill, in order to obtain the maximal drill straightness and process speed.
Specific IMSA functions to control the deep drilling process:
– Electronic check of cutting parameters,
– Double electronic check against gundrill-breaking, by reading the cutting effort.
Temperature, pressure and oil cleanliness are fundamental parameters to ensure continuous trouble-free gun drilling operations. The IMSA MFTB …/51 GDK deep hole drilling machines are equipped with the best solutions that automatically manage these three parameters to the most suitable value:
– high-pressure pumps with inverter;
– for oil clarification: a complete 3-level filtering system;
– for oil cooling: a heat exchanger.
Options
Automatic door opening at workpiece side,
Workpiece loader,
Automatic chip cleaner.
Drilling diameter range with BTA/STS tools: 18-51 mm.
Max. drilling diameter in counter-boring: 65 mm.
Drilling depth max. 1000 / 1500 / 2000 mm (as per machine name).
Workpiece counter-rotation 80 rpm.
Workpiece locking movement: hydraulic.
