Cnc Deep Hole Drilling Machine for cylindrical parts, on-center holes

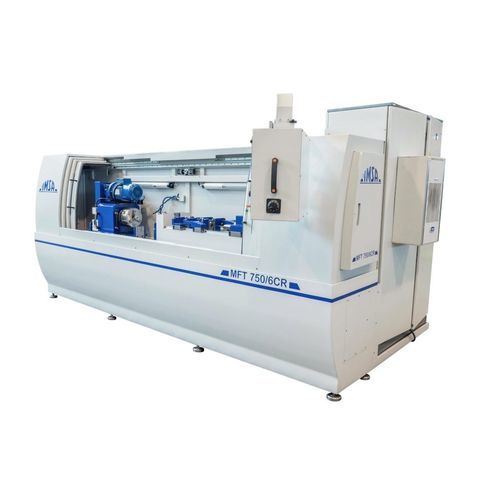

The deep hole drilling machine IMSA MFT 750/6 CR is dedicated to workpieces up to 750mm, that have to be drilled on their rotation axis for diameters from 1,5 to 6 mm. A typical application is the medical industry.
The workpiece is in counter-rotation in respect to the gun drill, in order to obtain the maximal drill straightness and process speed. Counter-rotation 150 rpm.
Specific IMSA functions to control the deep hole drilling process:
– Electronic check of cutting parameters
– Double electronic check against gundrill-breaking, by reading the cutting effort.
Temperature, pressure and oil cleanliness are fundamental parameters to ensure continuous trouble-free gun drilling operations. MFT 750/6 CR is equipped with the best solutions that automatically manage these three parameters to the most suitable value:
– for oil supply to the gundrill: two different high-pressure pumps;
– for oil clarification: a complete two-level filtering system;
– for oil cooling: a heat exchanger (chiller).
Options
Workpiece automatic loader,
Controlled CR head movement,
Automatic door opening,
Automatic chip conveyor,
Steadyrest for workpiece support,
Digital pressure measurement.
Drilling depth max. (Ø 1,5 – 3 mm) 120 mm
Drilling depth max. (Ø 3 – 6 mm) 750 mm
Workpiece counter-rotation 150 rpm
Oil pressure max. 180 bar
