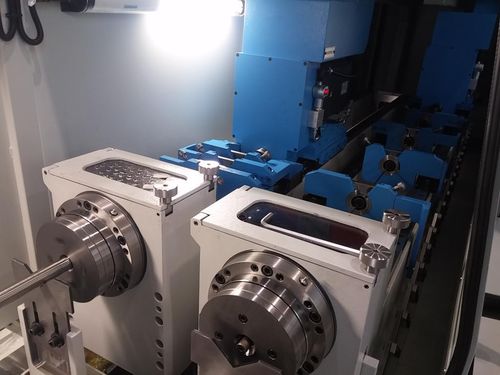

Cnc Deep Hole Drilling Machine to drill on-center holes in cylindrical parts. Two independent drilling units.
The IMSA deep hole drilling machines MFT 1000 /2TiCR and MFT 1500 /2TiCR are dedicated to cylindrical workpieces that have to be drilled on their rotation axis. Hole diameter range 6 – 25 mm. Drilling depth 1000 or 1500mm respectively.
“2Ti”: these machine models are equipped with 2 INDEPENDENT drilling carriages, resulting in higher flexibility and adaptability to different production needs. The 2 drilling axes, independent in motors and controls, enable to drill different workpieces on the 2 units.
The workpiece is in counter-rotation in respect to the gun drill, in order to obtain the maximal drill straightness and process speed. Counter-rotation 150 rpm. The 2 counter-rotating contrast heads enable to compensate the differences in workpiece length.
Specific IMSA functions to control the deep drilling process:
– Electronic check of cutting parameters,
– Double electronic check against gundrill-breaking, by reading the cutting effort.
Temperature, pressure and oil cleanliness are fundamental parameters to ensure continuous trouble-free gundrilling operations. The deep hole drilling machines MFT 1000 /2TiCR and MFT 1500 /2TiCR are equipped with the best solutions that automatically manage these three parameters to the most suitable value:
– high-pressure pump, continuously managing pressure and flow, 1 for each spindle;
– for oil clarification: a complete 3-level filtering system;
– for oil cooling: a heat exchanger (chiller).
Chip conveyor as standard equipment.
Options
Workpiece automatic loader,
Automatic door opening,
Steadyrest for workpiece support,
