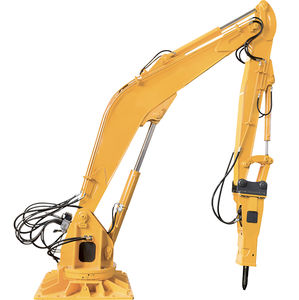

Pedestal-mount hydraulic pedestal boom IBS 33

for rock breakers

Overview
BOOM SYSTEMS
Positioner arm IBS 33, part of the IBS series. Designed to mount hydraulic breakers and operate with external power packs of 15, 21 or 30 kW. Maximum horizontal reach: 3.3 m.

Technical specifications

• Maximum horizontal length: 3.3 m
• Compatible power packs (kW): 15, 21, 30

Compatible hydraulic breakers
with 15 kW power pack

• HP 100 (59 kg)
• HP 150 (80/98 kg)
• HP 200 (160 kg)
• HP 400 (230 kg)

with 21 kW power pack

• HP 550 (320 kg)
• HP 600 (390 kg)
• HP 700 (440 kg)

with 30 kW power pack

• HP 900 (550 kg)
• HP 1200 (650 kg)

Compatibility summary

• 15 kW: HP 100 (59 kg); HP 150 (80/98 kg); HP 200 (160 kg); HP 400 (230 kg)
• 21 kW: HP 550 (320 kg); HP 600 (390 kg); HP 700 (440 kg)
• 30 kW: HP 900 (550 kg); HP 1200 (650 kg)
