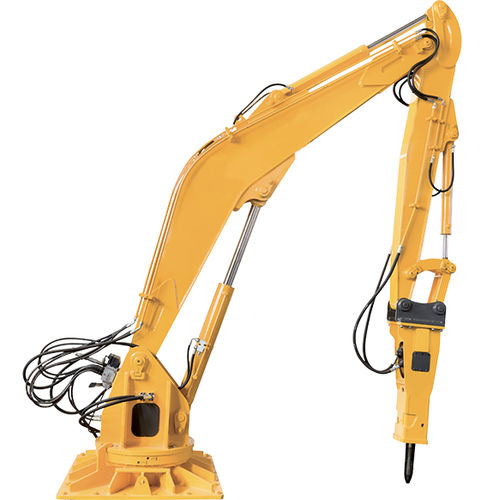

Heavy load hydraulic pedestal boom IBS 143
pedestal-mountfor rock breakerslong-reach

Heavy load hydraulic pedestal boom - IBS 143 - INDECO - pedestal-mount / for rock breakers / long-reach
Heavy load hydraulic pedestal boom - IBS 143 - INDECO - pedestal-mount / for rock breakers / long-reach
Heavy load hydraulic pedestal boom - IBS 143 - INDECO - pedestal-mount / for rock breakers / long-reach - image - 2
Add to favorites
Compare this product
Go to the INDECO website for more information

Characteristics

Options
long-reach, for rock breakers, pedestal-mount, for heavy loads
Horizontal reach

14.3 m
(46'10" )

Description

Product type
Positioning boom for hydraulic breakers and power packs

Series
IBS Series

Model
IBS 143

Technical specifications (excerpt)
  • Maximum horizontal length: 14.3 m
  • Compatible power packs (kW): 45, 55, 75
  • Compatible breakers with 45 kW power pack: HP 2000 (1200 kg), HP 2500 (1500 kg)
  • Compatible breakers with 55 kW power pack: HP 2750 (1690 kg), HP 3500 (2200 kg)
  • Compatible breakers with 75 kW power pack: HP 4000 (2500 kg), HP 5000 (3150 kg)


Notes
  • Data correspond to the IBS 143 boom system configuration as published by the manufacturer. Verify compatibility with your application before selection.


Characteristics / technical specifications
  • Maximum horizontal length: 14.3 m
  • Compatible power packs: 45 kW, 55 kW, 75 kW
  • Compatible breakers (45 kW): HP 2000 (1200 kg), HP 2500 (1500 kg)
  • Compatible breakers (55 kW): HP 2750 (1690 kg), HP 3500 (2200 kg)
  • Compatible breakers (75 kW): HP 4000 (2500 kg), HP 5000 (3150 kg)
