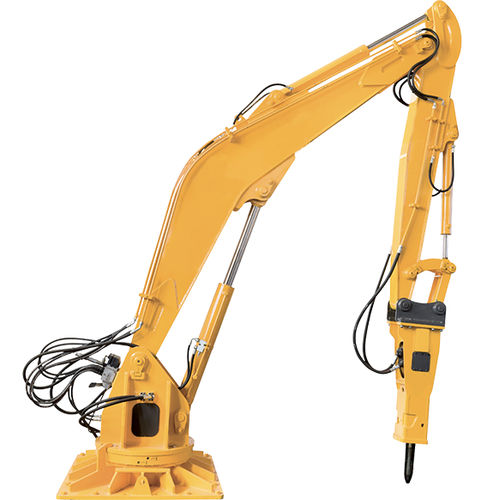

Rock breaker hydraulic pedestal boom IBS 40

long-reach

Product
Positioning booms
IBS 40
IBS Series

Technical specifications
Maximum horizontal length: 4 m
Compatible power packs (kW): 15, 21, 30, 37

Compatible hammers with 15 kW power pack

• HP 100 (59 kg)
• HP 150 (80/98 kg)
• HP 200 (160 kg)
• HP 400 (230 kg)

Compatible hammers with 21 kW power pack

• HP 550 (320 kg)
• HP 600 (390 kg)
• HP 700 (440 kg)

Compatible hammers with 30 kW power pack

• HP 900 (550 kg)
• HP 1200 (650 kg)

Compatible hammers with 37 kW power pack

• HP 1500 (850 kg)
• HP 1800 (1000 kg)

Characteristics / technical specifications

• Maximum horizontal length: 4 m
• Compatible power packs (kW): 15, 21, 30, 37
• Compatible hammers with 15 kW power pack: HP 100 (59 kg), HP 150 (80/98 kg), HP 200 (160 kg), HP 400 (230 kg)
• Compatible hammers with 21 kW power pack: HP 550 (320 kg), HP 600 (390 kg), HP 700 (440 kg)
• Compatible hammers with 30 kW power pack: HP 900 (550 kg), HP 1200 (650 kg)
• Compatible hammers with 37 kW power pack: HP 1500 (850 kg), HP 1800 (1000 kg)
